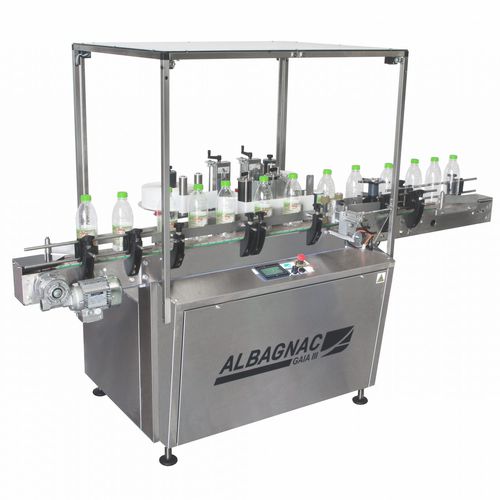

Automatic labelling machine GAIA

for bottlescanfor defect detection

This machine, thanks to its technology, combines simple setting with impeccable work quality for all cylindrical, conical, and square products. Its digital control gives it unequalled application precision. Thanks to its many options, it adapts perfectly to all your productions up to 40 products per minute. For example, to gain speed in the application phase, the products are blocked (stored) and then rotated by pneumatic equipment. The labels are precisely detected by optical fibre and are automatically calibrated. In terms of reliability and quality of the application, any detection of faults leads to an automatic stopping of the operation. Cadence: up to 40 products/minute 2,400 products/hour Dimensions of the machine: • Length: 3,105 mm • Depth: 1,000 mm Cram closed • Depth: 2,080 mm Cram open • Height: 1,800 mm Possible options: • 2nd labelling station • 3rd labelling station • labelling station or top station • Upper product presser (square) • Variable speed conveyor • Orientation of the covering • Electric height setting of the stations • Marking/printing on label (Lot number, B.B., etc.) • Complex smoothing (guarantee band, tax band, etc.)
