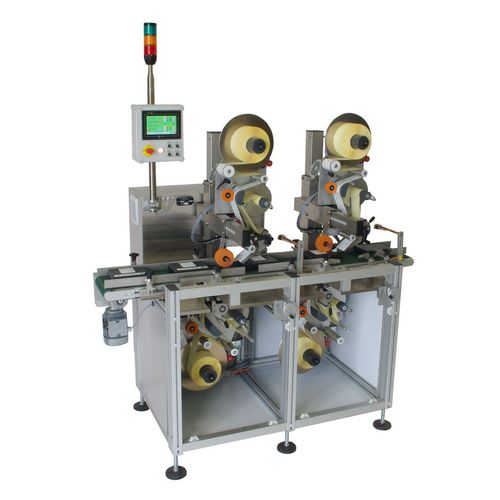

Automatic labeler ECM

topfor the food industryfor the cosmetics industry

The ECM labelling machine allows from one to three labels to be placed on the top of the product and from one to three labels to be placed on the bottom of the product at a rate of up to 200 strokes/minute. The option above/below is available. The lower labelling station is easily extractable to facilitate the changing of reel. It is offered in two motorizations: asynchronous and brushless. It can operate continuously thanks to an alternating coupling of two stations. The marking by direct printing on the label makes it possible to insert any regulatory information with high variability, (Lot number, B.B., etc.) or any promotional information. Cadence: • 200 products/minute • 12,000 products/hour Dimensions of the machine: Length: 1,861 mm Width: 830 mm (Cram closed) Height: from 1,500 mm to 1,850 mm Possible options: • Station for application to the side of the product • Upper presser for application to the side • Height and transverse electric setting of the stations • Product spacer • Product transfer • Dynamic front or rear flap smoother • Security cabin • Printing system integration (Best before batch number) • Back: 120 mm / 170 mm / 300 mm • Large capacity: reel of labels Ø 400 mm • Pre reel-end sensor
