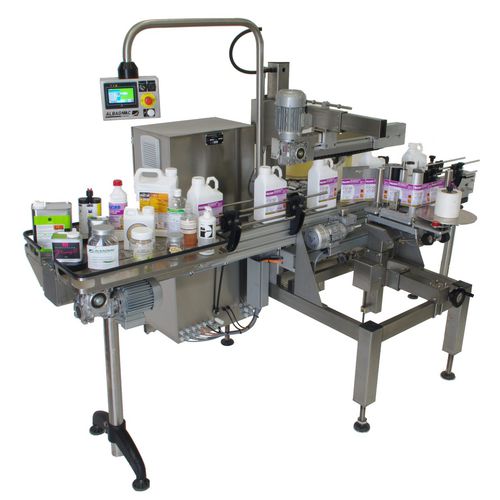

Automatic labeler ECR

sidefor the food industryfor the cosmetics industry

Labelling machine allowing the placement of one to six labels on cylindrical products or products of complex shapes. It is particularly adaptable to various containers. It offers rates of up to 200 strokes per minute. It is offered in two motorizations: asynchronous and brushless and with three "plus" functions: Smoothing flaps for front and rear, Automatic lifting of handle for transport, distribution of products with rate adjustment. Finally, the marking by direct printing on the label makes it possible to insert any regulatory information with high variability (Lot number, B.B., etc.) or any promotional information Cadence: Asynchronous motorization: Up to 70 products/minute Up to 4,000 products/hour Brushless motorization Up to 200 products/minute Up to 12,000 products/minute Dimensions of the machine: Chassis length: Short 840 mm / Medium 1,390 mm / Long 1,940mm Conveyor width: 120 mm / 160 mm / 210 mm / 320 mm Chassis width: 1,040 mm + width of the chosen conveyor Conveyor height: Low chassis 700 mm to 900 mm Chassis height: 850 mm to 1,050 mm Possible options: • Station for application on the top • Upper presser for holding product • Electrical transverse setting of the stations (permutation) • Smoother flaps, front rear or sides • Smoothing by rotation • Smoothing by banding • Automatic handle lifting • Product spacer • Marking / printing on labels (Lot number, B.B., etc.) • Back: 120 mm / 170 mm / 300 mm • Large capacity: reel of labels Ø 400 mm • Shape product positioner (ovoid) • Pre reel-end sensor • Product transfer • Security cabin
