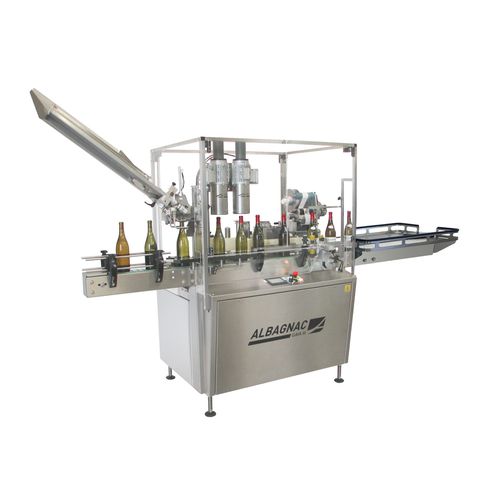

Automatic labelling machine GAIA III 2000 VIN TRANQUILLE

for bottlesfor the wine industryin-line

This machine embeds all the functionalities of the GAIA VT, it offers a crimping system with two heads in line which ensures an irreproachable crimping quality. Its digital control gives it unequalled installation precision. Thanks to its many options, it adapts perfectly to a wide variety of productions. Its capping system equipped with 2 linear crimping heads by asymmetrical movement: slow descent / rapid rise allows precise and quality application at this level of cadence. Cadence: • Up to 2,400 Bottles/hour Dimensions of the machine: • Length: 2,565 mm • Width: 1,029 mm • Height: 2,200 mm Possible options: • 2nd labelling station • 3rd station (2 tilts) • 4th labelling station (1 tilt) • Body label height 210 mm or 290 mm • Stations tilting for conical products • Electric height setting of the stations • Cap dispenser • TS8 roller leveller capping • Heat shrinkable capping • Large capacity tilted magazine • Bottles orientation: bottom notch or (and) optics or (and) moulding joint • Automatic stopping of the application at the end of the label roll • Printing system integration • Input conveyor • Large capacity exit table • Mounted on wheels
