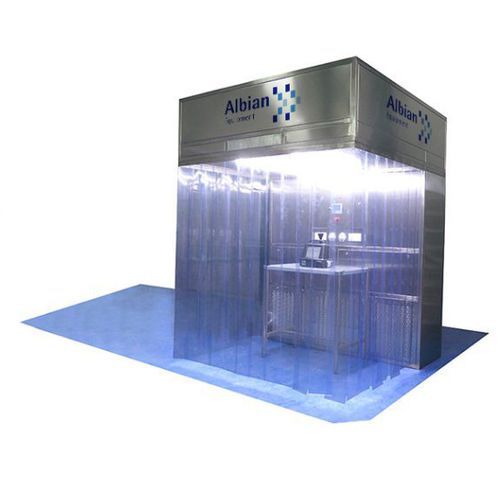

Protective cabin CFL PN

vertical laminar flowstainless steelLED

LAMINAR FLOW CABINS · WEIGHING CABINS SERIE CFL PN Albian vertical laminar flow cabins offer the highest level of protection for the operator, minimising the risk of possible cross-contaminations with other products or processes by HEPA filtering. Robust construction and great reliability make them suitable for a long service life in all application sectors. PROPERTIES • Construction of AISI 304 stainless steel sheet. • EC fans of high efficiency and low sound level with adjustable speed. • Air laminator of perforated stainless steel sheet. • LED lighting. • Filters – two stages: · 1 – Pre-filtering: G-4 filters (90-95% gravimetric). · 2 – Final filtering: H-14 filters (99.995% MPPS E). · Replacement of filters: from the work area. • Electricity and control: · Double pressure gauge with differential reading: filters clogging control. · Electrical protection elements. · Filter clogging alarm. · Siemens S7 automata + GUI touchscreen. · Hot wire speed probe. • Air speed adjustable from 0.45 m/s ±20%. • PVC strips anti-static curtain. • Equipment split for easy assembly.
