Peristaltic pump ALH80waterfor chemicalsfor food products
Add to favorites
Compare this product
Characteristics
- Fluid
- water, for chemicals, for food products, lubricating oil, grout, for cement, for self-leveling floor screed, plaster, foam concrete
- Operation
- electric
- Priming
- self-priming
- Technology
- peristaltic
- Mobility
- stationary
- Domain
- for water treatment, industrial, fish farming, for the textile industry, for the nuclear industry, for public works, for the chemical industry, for the food industry, agriculture, for the mining industry, for the automotive industry, for the biotechnology industry, sanitary, for the glass industry, medical, for the metallurgical industry, for the construction industry, for the paper industry, for the cosmetics industry, for the printing industry
- Applications
- discharge, transfer, high-pressure, metering, treatment, recirculation, process, circulation, chemical process, irrigation, suction, sewage, unloader, for industrial applications, for reverse osmosis, for printing machines, distribution, for harsh environments, for pumping stations, sanitation, unloading, washing, dredging, trial, dewatering, loading, high-volume, filling, for self-leveling floor screed, for hazardous locations, high-temperature
- Material
- stainless steel, cast iron, aluminum, plastic, steel, PTFE, polypropylene, metal
- Fluid specification
- for viscous fluids, for aggressive media, for brine, for heavy fluids, for solids-laden fluids, for abrasive fluids, for high-viscosity fluids, for corrosive fluids, for low-viscosity fluids, cutting fluid, for engine oil, for mineral oil, for fluids with lubricating properties, dye, for hazardous fluids, for toxic fluids, for used oil
- Protection level
- chemical-resistant, abrasion-resistant, explosion-proof, explosion-proof, with integrated safety, hazardous-duty, ATEX, corrosion-resistant, robust, IP55
- Other characteristics
- lubricated, horizontal mount, suction, high-flow, easy tube loading, floor-mounted, ball bearing, high-capacity, in-line, custom, high-efficiency, heavy-duty, adjustable, oil-free, variable-flow, high-performance, with speed controller, standard, fixed-displacement, low-vibration, adjustable-flow, direct-drive, heavy-duty, stand-alone, medium-flow, with frequency converter, OEM, bi-directional, with gear reducer, medium-capacity, no-clog, fixed-speed, large, multiphase, custom, low-pressure, rugged, rugged, rugged, fixed-flow, integrated-drive, base-mounted, variable-speed, rotary, corrosion-proof, with variable-speed controller, low-NPSH, low-noise, flange, medium-sized, with stand, seal-less, for protective coverings
- Flow
Max.: 35 m³/h
(1,236.01334 ft³/h)Min.: 13 m³/h
(459.09067 ft³/h)- Pressure
Max.: 15 bar
(217.557 psi)Min.: 1 bar
(14.504 psi)- Head
9.8 m
(32'01" )- Power
Max.: 18.5 kW
(25.15 hp)Min.: 11 kW
(14.96 hp)- Input diameter
88.9 mm
(3.5 in)- Output diameter
88.9 mm
(3.5 in)- Length
1,400 mm
(55 in)- Width
1,358 mm
(53.46 in)- Height
1,320 mm
(51.97 in)- Weight
970 kg
(2,138.48 lb)
Description

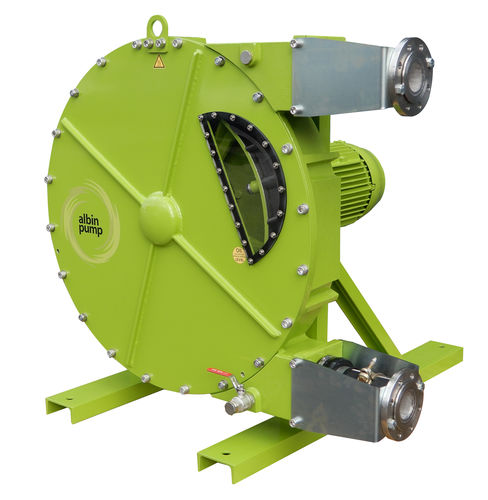

HIGH PRESSURE (ALH) PERISTALTIC PUMP - ALBIN PUMP
- Volumetric flow up to 35 m3/h (154 gpm)
- No mechanical seal or stuffing box
- Robust, entirely of ductile iron
- Suitable for aggressive or viscous fluids
- Dosing of very corrosive chemicals
- Fully self-priming up to 9.8 m
- Damage-free continuous dry running
- Outlet pressures up to 15 bar (220 psi)
- Very easy maintenance
- Stainless steel screws
- Heavy-duty bearings, greased for life
- Two-year warranty
- Plug and Play
- Perfect volumetric flow
- Reversible flow
- Close coupled with gearbox protection
- Low sound level: :< 70 dB at 1 meter
Typical applications:
WATER TREATMENT: lime cream, ferrous chloride, activated carbon, reagent feed, coagulant, flocculate dispersion, alum, sludge & foams
MINERAL PROCESSING: sludge with high viscosity, clay, particle size, lead sulfate, pyrite, SABX, cyanide, various acids
CERAMIC: ceramic glaze, mould filling, filter press feeding
BUILDING: fibrous mortar, plaster, light concrete, cement flooring
CHEMICAL INDUSTRY: various acids, PVDF latex, alcohol, soap, non aromatic solvents
FOOD INDUSTRY: tomato sauce, mash potatoes, gelatin, beer yeast, fish paste, olive oil, wine.
PAINT AND PIGMENTS INDUSTRY: water based paint, acrylics, pigments, ink, wall coating
PAPER MILLS: latex, kaolin, paper waste sludge, various chemical dosing
AGRICULTURE AND BIOGAZ: manure, fertilizer sugar mills, treacle, liquid, sugar and various chemicals
