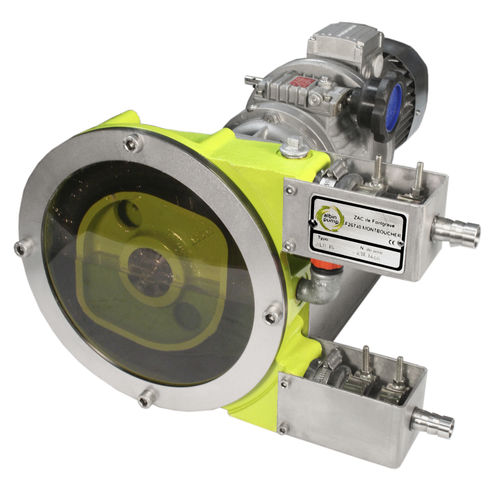

Chemical pump ALH15-3
for food productsoilgrout

chemical pump
chemical pump
chemical pump
Add to favorites
Compare this product

Go to the Albin Pump website for more information

Characteristics

Fluid
for chemicals, for food products, oil, grout, for cement, for self-leveling floor screed, plaster
Operation
electric
Priming
self-priming
Technology
peristaltic
Mobility
mobile, stationary
Domain
for the food industry, industrial, for the chemical industry, for water treatment, agriculture, for the cosmetics industry, for the paper industry, for the printing industry, for the automotive industry, for the textile industry, for public works
Applications
transfer, metering, discharge, process, trial, volumetric dispensing, circulation, chemical process, for industrial applications, for harsh environments, cleaning, treatment, for printing machines, for reverse osmosis, suction, sanitation, for hazardous locations, injection
Material
stainless steel, cast iron, aluminum, plastic, PTFE, steel, polypropylene, metal
Fluid specification
for low-viscosity fluids, for aggressive media, for solids-laden fluids, for abrasive fluids, for heavy fluids, for viscous fluids, for high-viscosity fluids, for corrosive fluids, cutting fluid, for mineral oil, for fluids with lubricating properties, coagulant, dye, for brine, flavouring
Protection level
chemical-resistant, abrasion-resistant, explosion-proof, explosion-proof, hazardous-duty, ATEX, corrosion-resistant
Other characteristics
seal-less, compact, bidirectional, skid-mounted, integrated-drive, with gear reducer, heavy-duty, for fluids, with frequency converter, medium-flow, horizontal mount, low-flow, for packaging machines, floor-mounted, base-mounted, easy tube loading, fixed-displacement, high-reliability, heavy-duty, lubricated, multiphase, in-line, transportable, continuous-flow, adjustable, rotary, variable-flow, corrosion-resistant, tank-mounted, for protective coverings, with stand, fixed-speed, ball bearing, with variable-speed controller, fixed-flow, stand-alone, low-NPSH, adjustable-flow
Flow

Max.: 220 l/h
(58.11785 us gal/h)

Min.: 1 l/h
(0.26417 us gal/h)

Pressure

Max.: 10 bar
(145.038 psi)

Min.: 1 bar
(14.504 psi)

Power

Max.: 0.55 kW
(0.75 hp)

Min.: 0.37 kW
(0.5 hp)

Weight

Max.: 40 kg
(88.18 lb)

Min.: 35 kg
(77.16 lb)

Description

HIGH PRESSURE (ALH) PERISTALTIC PUMP - ALBIN PUMP - Volumetric flow up to 420 l/h (111 gph) - No mechanical seal or stuffing box - Robust, entirely of ductile iron - Suitable for aggressive or viscous fluids - Dosing of very corrosive chemicals - Fully self-priming up to 9.8 m - Damage-free continuous dry running - Outlet pressures up to 10 bar - Very easy maintenance - Stainless steel screws - Heavy-duty bearings, greased for life - Two-year warranty - Plug and Play - Perfect volumetric flow - Reversible flow - Close coupled with gearbox protection - Low sound level: :< 70 dB at 1 meter Typical applications : WATER TREATMENT : lime cream, ferrous chloride, activated carbon, reagent feed, coagulant, flocculate dispersion, alum, sludge & foams MINERAL PROCESSING : sludge with high viscosity, clay, particle size, lead sulfate, pyrite, SABX, cyanide, various acids CERAMIC : ceramic glaze, mould filling, filter press feeding BUILDING : fibrous mortar, plaster, light concrete, cement flooring CHEMICAL INDUSTRY : various acids, PVDF latex, alcohol, soap, non aromatic solvents FOOD INDUSTRY : tomato sauce, mash potatoes, gelatin, beer yeast, fish paste, olive oil, wine. PAINT AND PIGMENTS INDUSTRY : water based paint, acrylics, pigments, ink, wall coating PAPER MILLS : latex, kaolin, paper waste sludge, various chemical dosing AGRICULTURE AND BIOGAZ : manure, fertilizer sugar mills, treacle, liquid, sugar and various chemicals

Catalogs

No catalogs are available for this product.

See all of Albin Pump‘s catalogs
Go to the Albin Pump website for more information
