Peristaltic pump ALH20-3for chemicalsslurryfor food products
Add to favorites
Compare this product
Characteristics
- Technology
- peristaltic
- Fluid
- for chemicals, slurry, for food products, oil, grout, for cement, for self-leveling floor screed, plaster
- Operation
- electric
- Priming
- self-priming
- Mobility
- mobile, stationary
- Domain
- industrial, for the chemical industry
- Applications
- for industrial applications, transfer, for printing machines, metering, discharge, process, circulation, chemical process, volumetric dispensing, for reverse osmosis, cleaning, trial, sanitation, treatment, for harsh environments, for hazardous locations, suction, injection
- Material
- stainless steel, cast iron, aluminum, plastic, PTFE, steel, polypropylene, metal
- Fluid specification
- for aggressive media, for solids-laden fluids, dye, for abrasive fluids, for viscous fluids, for high-viscosity fluids, for low-viscosity fluids, for corrosive fluids, for heavy fluids, cutting fluid, for mineral oil, coagulant, flavouring, for fluids with lubricating properties, for brine
- Protection level
- chemical-resistant, abrasion-resistant, explosion-proof, explosion-proof, hazardous-duty, ATEX, corrosion-resistant, robust
- Other characteristics
- transportable, compact, bi-directional, tank-mounted, with stand, horizontal mount, lubricated, adjustable-flow, in-line, stand-alone, multiphase, floor-mounted, rotary, variable-flow, skid-mounted, integrated-drive, corrosion-proof, seal-less, fixed-flow, for packaging machines, for fluids, fixed-speed, easy tube loading, variable-speed, heavy-duty, fixed-displacement, for protective coverings, continuous-flow, high-reliability, medium-flow, low-flow
- Flow
Min.: 1 l/h
(0.26417 us gal/h)Max.: 670 l/h
(176.99528 us gal/h)- Pressure
Min.: 1 bar
(14.504 psi)Max.: 10 bar
(145.038 psi)- Weight
Min.: 36 kg
(79.37 lb)Max.: 40 kg
(88.18 lb)
Description

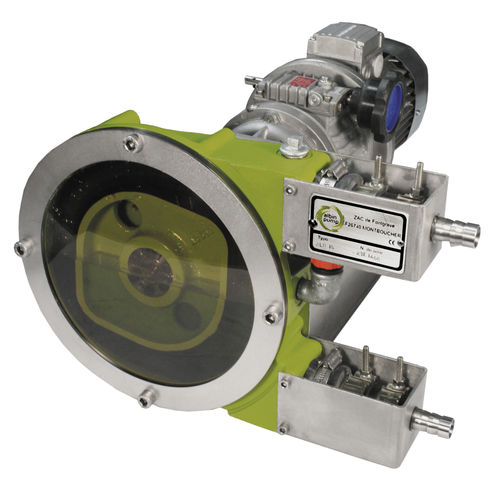

HIGH PRESSURE (ALH) PERISTALTIC PUMP - ALBIN PUMP
- Volumetric flow up to 670 l/h (177 gph)
- No mechanical seal or stuffing box
- Robust, entirely of ductile iron
- Suitable for aggressive or viscous fluids
- Dosing of very corrosive chemicals
- Fully self-priming up to 9.8 m
- Damage-free continuous dry running
- Outlet pressures up to 10 bar
- Very easy maintenance
- Stainless steel screws
- Heavy-duty bearings, greased for life
- Two-year warranty
- Plug and Play
- Perfect volumetric flow
- Reversible flow
- Close coupled with gearbox protection
- Low sound level: :< 70 dB at 1 meter
Typical applications :
WATER TREATMENT : lime cream, ferrous chloride, activated carbon, reagent feed, coagulant, flocculate dispersion, alum, sludge & foams
MINERAL PROCESSING : sludge with high viscosity, clay, particle size, lead sulfate, pyrite, SABX, cyanide, various acids
CERAMIC : ceramic glaze, mould filling, filter press feeding
BUILDING : fibrous mortar, plaster, light concrete, cement flooring
CHEMICAL INDUSTRY : various acids, PVDF latex, alcohol, soap, non aromatic solvents
FOOD INDUSTRY : tomato sauce, mash potatoes, gelatin, beer yeast, fish paste, olive oil, wine.
PAINT AND PIGMENTS INDUSTRY : water based paint, acrylics, pigments, ink, wall coating
PAPER MILLS : latex, kaolin, paper waste sludge, various chemical dosing
AGRICULTURE AND BIOGAZ : manure, fertilizer sugar mills, treacle, liquid, sugar and various chemicals
