Peristaltic pump ALH20for wastewaterfor industrial waterfor chemicals
Add to favorites
Compare this product
Characteristics
- Technology
- peristaltic
- Fluid
- for wastewater, for industrial water, for chemicals, slurry, for food products, for lubricants, grout, for cement, for self-leveling floor screed, plaster
- Operation
- electric
- Priming
- self-priming
- Mobility
- mobile, stationary
- Domain
- for the food industry, industrial, for the chemical industry, for water treatment, agriculture, for the cosmetics industry, for the paper industry, for the printing industry, for the automotive industry, for the textile industry, for public works
- Applications
- metering, transfer, for hazardous locations, for harsh environments, discharge, process, for reverse osmosis, for printing machines, circulation, chemical process, volumetric dispensing, for industrial applications, sanitation, cleaning, treatment, trial, suction, injection
- Material
- stainless steel, cast iron, aluminum, plastic, PTFE, steel, polypropylene, metal
- Fluid specification
- cutting fluid, for aggressive media, for solids-laden fluids, for abrasive fluids, coagulant, for viscous fluids, for high-viscosity fluids, for low-viscosity fluids, for corrosive fluids, for mineral oil, for fluids with lubricating properties, flavouring, dye, for brine, for heavy fluids
- Protection level
- chemical-resistant, abrasion-resistant, explosion-proof, explosion-proof, hazardous-duty, ATEX, corrosion-resistant, robust
- Other characteristics
- in-line, compact, horizontal mount, multiphase, lubricated, medium-flow, transportable, tank-mounted, stand-alone, fixed-flow, rotary, corrosion-resistant, with speed controller, for protective coverings, with stand, base-mounted, floor-mounted, variable-flow, skid-mounted, seal-less, bi-directional, low-flow, easy tube loading, fixed-speed, for fluids, for packaging machines, adjustable-flow, variable-speed, heavy-duty, integrated-drive, with gear reducer, continuous-flow, high-reliability
- Flow
Min.: 1 l/h
(0.26417 us gal/h)Max.: 1,020 l/h
(269.45549 us gal/h)- Pressure
Min.: 1 bar
(14.504 psi)Max.: 10 bar
(145.038 psi)- Power
Min.: 0.37 kW
(0.5 hp)Max.: 0.55 kW
(0.75 hp)- Weight
Min.: 36 kg
(79.37 lb)Max.: 40 kg
(88.18 lb)
Description

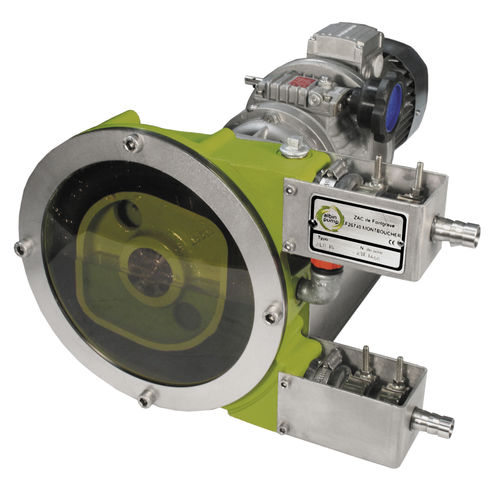

HIGH PRESSURE (ALH) PERISTALTIC PUMP - ALBIN PUMP
- Volumetric flow up to 1,020 l/h (269 gph)
- No mechanical seal or stuffing box
- Robust, entirely of ductile iron
- Suitable for aggressive or viscous fluids
- Dosing of very corrosive chemicals
- Fully self-priming up to 9.8 m
- Damage-free continuous dry running
- Outlet pressures up to 10 bar
- Very easy maintenance
- Stainless steel screws
- Heavy-duty bearings, greased for life
- Two-year warranty
- Plug and Play
- Perfect volumetric flow
- Reversible flow
- Close coupled with gearbox protection
- Low sound level: :< 70 dB at 1 meter
Typical applications :
WATER TREATMENT : lime cream, ferrous chloride, activated carbon, reagent feed, coagulant, flocculate dispersion, alum, sludge & foams
MINERAL PROCESSING : sludge with high viscosity, clay, particle size, lead sulfate, pyrite, SABX, cyanide, various acids
CERAMIC : ceramic glaze, mould filling, filter press feeding
BUILDING : fibrous mortar, plaster, light concrete, cement flooring
CHEMICAL INDUSTRY : various acids, PVDF latex, alcohol, soap, non aromatic solvents
FOOD INDUSTRY : tomato sauce, mash potatoes, gelatin, beer yeast, fish paste, olive oil, wine.
PAINT AND PIGMENTS INDUSTRY : water based paint, acrylics, pigments, ink, wall coating
PAPER MILLS : latex, kaolin, paper waste sludge, various chemical dosing
AGRICULTURE AND BIOGAZ : manure, fertilizer sugar mills, treacle, liquid, sugar and various chemicals
