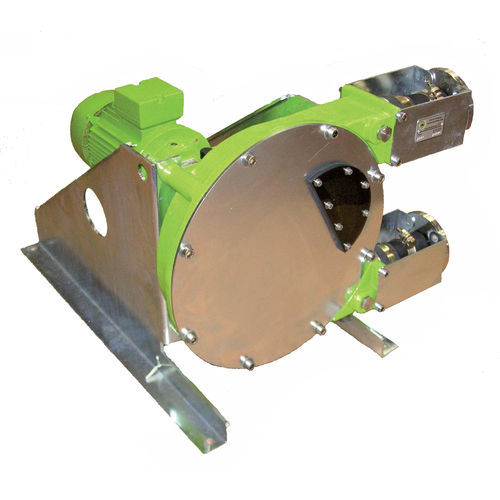

Peristaltic pump ALH40waterfor chemicalsfor food products
Add to favorites
Compare this product
Characteristics
- Fluid
- water, for chemicals, for food products, lubricating oil, grout, for cement, for self-leveling floor screed, plaster
- Operation
- with electric motor
- Priming
- self-priming
- Technology
- peristaltic
- Mobility
- stationary, mobile
- Domain
- for the chemical industry, industrial, for public works, for the food industry, for water treatment, agriculture, for the mining industry, for the construction industry, for the biotechnology industry, fish farming, for maritime applications, for the cosmetics industry, for the paper industry, for the nuclear industry, for the automotive industry, for the textile industry
- Applications
- circulation, transfer, high-pressure, metering, suction, for hazardous locations, process, for reverse osmosis, cleaning, unloader, discharge, for industrial applications, unloading, volumetric dispensing, cooling, irrigation, washing, recirculation, sanitation, sewage, sump, for harsh environments, chemical process, dewatering, trial, treatment, vehicle equipment, filling, injection
- Material
- stainless steel, cast iron, aluminum, plastic, PTFE, steel, polypropylene, metal
- Fluid specification
- for aggressive media, for solids-laden fluids, for abrasive fluids, for viscous fluids, coagulant, for high-viscosity fluids, flavouring, for corrosive fluids, for low-viscosity fluids, for heavy fluids, dye, cutting fluid, for mineral oil, for hazardous fluids, for brine
- Other characteristics
- high-efficiency, suction, medium-capacity, transportable, horizontal mount, floor-mounted, ball bearing, with gear reducer, medium-sized, with frequency converter, heavy-duty, high-reliability, for protective coverings, corrosion-proof, heavy-duty, medium-flow, continuous-flow, adjustable-flow, high-performance, rugged, lubricated, low-noise, rugged, bi-directional, base-mounted, high-capacity, skid-mounted, rotary, with speed controller, with stand, high-flow, with pulsation damper, fixed-displacement, variable-speed, multiphase, low-NPSH, in-line, seal-less, for fluids, variable-flow, rugged, fixed-speed, integrated-drive, stand-alone, easy tube loading, flange
- Flow
Min.: 1.3 m³/h
(45.90907 ft³/h)Max.: 8.2 m³/h
(289.58027 ft³/h)- Pressure
Min.: 1 bar
(14.504 psi)Max.: 15 bar
(217.557 psi)- Power
Min.: 1.5 kW
(2.04 hp)Max.: 2.2 kW
(2.99 hp)- Length
Min.: 810 mm
(32 in)Max.: 810 mm
(32 in)- Width
Min.: 476 mm
(18.74 in)Max.: 476 mm
(18.74 in)- Height
Min.: 526 mm
(20.71 in)Max.: 526 mm
(20.71 in)- Weight
Min.: 145 kg
(319.67 lb)Max.: 150 kg
(330.69 lb)
Description
HIGH PRESSURE (ALH) PERISTALTIC PUMP - ALBIN PUMP
- Volumetric flow up to 8,2 m3/h (36 gpm)
- No mechanical seal or stuffing box
- Robust, entirely of ductile iron
- Suitable for aggressive or viscous fluids
- Dosing of very corrosive chemicals
- Fully self-priming up to 9.8 m
- Damage-free continuous dry running
- Outlet pressures up to 15 bar
- Very easy maintenance
- Stainless steel screws
- Heavy-duty bearings, greased for life
- Two-year warranty
- Plug and Play
- Perfect volumetric flow
- Reversible flow
- Close coupled with gearbox protection
- Low sound level: :< 70 dB at 1 meter
Typical applications :
WATER TREATMENT : lime cream, ferrous chloride, activated carbon, reagent feed, coagulant, flocculate dispersion, alum, sludge & foams
MINERAL PROCESSING : sludge with high viscosity, clay, particle size, lead sulfate, pyrite, SABX, cyanide, various acids
CERAMIC : ceramic glaze, mould filling, filter press feeding
BUILDING : fibrous mortar, plaster, light concrete, cement flooring
CHEMICAL INDUSTRY : various acids, PVDF latex, alcohol, soap, non aromatic solvents
FOOD INDUSTRY : tomato sauce, mash potatoes, gelatin, beer yeast, fish paste, olive oil, wine.
PAINT AND PIGMENTS INDUSTRY : water based paint, acrylics, pigments, ink, wall coating
PAPER MILLS : latex, kaolin, paper waste sludge, various chemical dosing
AGRICULTURE AND BIOGAZ : manure, fertilizer sugar mills, treacle, liquid, sugar and various chemicals
