Metering pump KM3

waterfor chemicalsfor food products

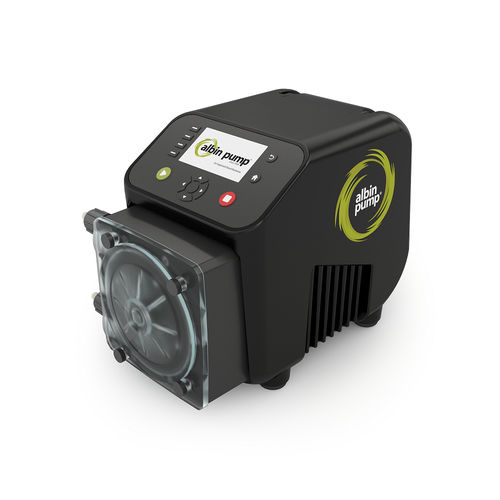

PERISTALTIC METERING PUMP (KM3) - ALBIN PUMP Specifications: Flow rate: up to 126 l/h (33 gph) Discharge pressure: up to 7.6 bar (110 psi) Turndown ratio: 10,000:1 Maximum suction lift: - 9 m Control options: Manual, 4-20 mA, SCADA, Modbus 4.33” color LCD display Optical tube leak detection standard Onboard run timer for predictive maintenance Several tube materials suitable for the huge majority of fluids, chemicals and applications Albin Pump KM Series cased-drive tubing pumps provide process confidence and offer cost savings through: - Next generation safety features: x A patent-pending offset rotor assembly releases tube compression during maintenance x Offset rotor allows drain and flush of tube prior to removal x Tube changes do not require users to manipulate the tube while rotor is turning -Tool-free tube change -Easy and intuitive navigation: No need for complex, multi-step menu each time a mode change is required -A best-in-class user experience featuring one-button switching between local and remote operation - USB port for downloading log files, uploading software updates and firmware upgrades - Each rotation gives the same displacement which provides excellent metering characteristic. Low shear -Pump will not vapor lock or air bind -Fully self-priming -No moving parts in liquid path: tubing is the only wetted item -Damage-free continuous dry running -No check balls/check valves -Reversible flow -Albin Service Point: Unique QR Code to get personalized product support, easily access product documentation, quickly request quote for spare parts specific to your KM pump and contact our teams and certified partners.
