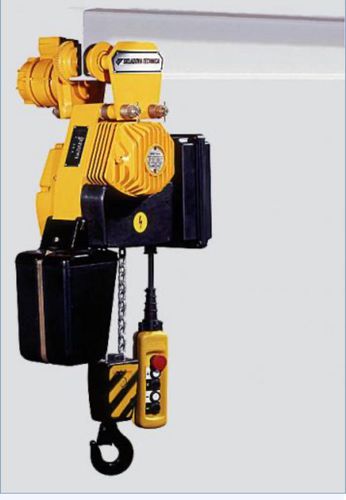

Electric chain hoist T BYC 104M 2
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Capacity
2,000 kg
(4,409.2 lb)- Speed
Max.: 4,000 mm/min
(2.6 in/s)Min.: 900 mm/min
(0.6 in/s)
Description
Description
Loading capacity: 2000 kg
FEM / ISO Group: 2m / M5
Weight approx .: 187 kg (net)
Lifting speed approx .: 4 / 0.9 m / min
Travel speed: 20 m / min
Engine capacity for movement: 0.12 / 0.18
Control voltage: 24 V AC
Lifting device voltage: 380-415 V / 50 Hz
Rated power: 1.5 / 0.33 kW
Enclosure type: IP 54
Insulation Class: F
Ambient temperature: -20 ° C to +45 ° C
