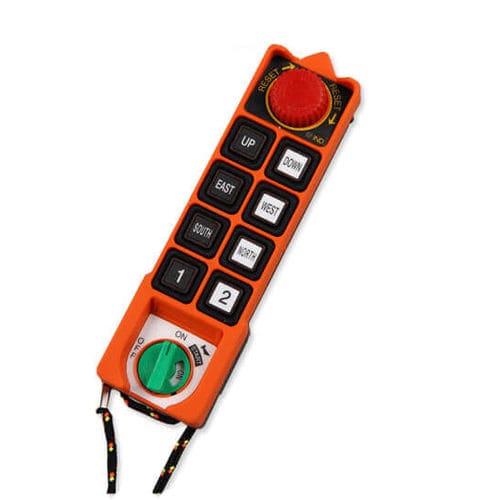

Radio control SAGA CRYSTAL

with buttons10-buttonwith emergency stop

Description CHARACTERISTICS OF THE TRANSMITTER: Overall dimensions: 163 x 49 x 45 mm Weight: 275g Power supply: 2 AA. The rotary key can be replaced by the START button (optional) CHARACTERISTICS OF THE RECEIVER: Overall dimensions: 167 x 154 x 88 mm Weight: 1400g (including cable) Power supply: AC type: 24/48/110/220 / 380V; DC type: 12 ~ 24V SPECIFICATIONS: Frequency control: “Crystal”. Low battery indicator. fault indication. Range: up to 100 meters. Operating temperature: -45 ~ + 80 ℃. Power: 10mA. Body Material: Fiberglass. Moisture / dustproof / shockproof IP65 housing. Programming functions. Modern radio control crane, with programmable features. The device has an elegant design and no external transmitter antenna (internal antenna). SAGA1-L10 has the ability to install both inside the electrical cabinet, and outside, is fixed to 1 special metal bolt with shock absorber (included). The device uses to transmit the signal, the frequency resonator “Quartz”. To ensure signal encryption and create security of use, the signal is encrypted with a special ID code (set by the manufacturer and has more than 4 billion combinations that never repeat). The SAGA1-L10 uses a modern coding system. The manufacturer SAGA1-L10 increased the safety of the device. Radio control is resistant to voltage drops, load transformer + 20%. The case of the device is protected from dust and moisture, as the case is impact-resistant, the degree of protection is IP65.
