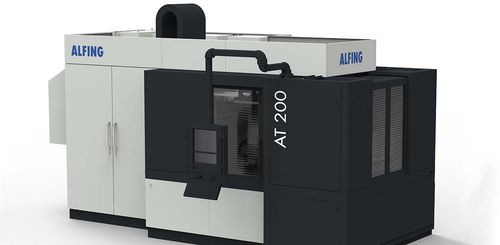

Machining finishing machine AT 200

boringhigh-speedfor high-volume production

FLEXIBILITY AND PRODUCTIVITY IN CON ROD MACHINING UNCOMPROMISINGLY SPECIALIZED The AT 200 and the AF 400 con rod machines are specialized in semi-finish and finish machining whereby every machine is optimally designed for the corresponding requirements. Highly precise sub-assemblies are only used where required. THE AT 200 FOR SEMI-FINISH MACHINING OF CON RODS Up to 4 fixture plates can be mounted for short change-over times Up to 2 turret heads with 4, 6 or 8 tools each Extremely short chip-to-chip time No chip problems at the tool interface thanks to the use of the tool turret High thermal stability High operator convenience Very good accessibility for maintenance and tool change Low space requirements on floor and in height Very versatile: Equipped with a Y-stroke of 630 mm it is a highly productive and process-safe alternative compared to a machining center CLAMPING FIXTURE UNCOMPROMISINGLY FLEXIBLE The clamping fixture swivels around the A-axis and can be moved linearly in Y-direction. It can be quickly changed over and allows a clamping sequence freely programmable in the NC program. Due to the high flexibility, it offers the possibility to quickly, easily and cost-efficiently produce different work pieces on the machine. Thanks to the four sided tombstone concept, up to 4 different component types can be machined without any change-over. UNCOMPROMISINGLY VARIABLE Up to two turret heads can be placed onto the slide moving in X- and Z-direction. Thus, work pieces can be machined parallel, significantly increasing the total output.
