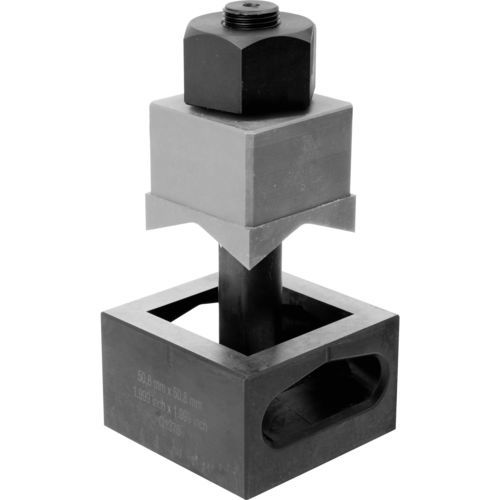

Screw hole punch FormCut+® series

rectangularsquare

Square and rectangular shaped punch-outs into steel sheets or stainless steel are typical applications for our hole-puncher Formcut+. In the version of a square shaped hole-puncher it’s available from 12,7 mm X 12,7 mm up to 138,0 mm X 138,0 mm. Of course the Formcut with a plus is equipped with a sideways puncher part ejection, ensuring an easy disposal oft he waste piece – without tilting in the die. Depending on the model, the square shaped hole puncher is usable on steel sheets with a material thickness from 1,75 mm up to 3,0 mm. Rectangular punch-outs are -due to the model- possible with the measurements 17,0 mm X 19,0 mm and 68,0 mm X 138,0 mm. Additional the FORMCUT is available for openings for 6-, 10-, 16-, oder 24-pin connectors.
