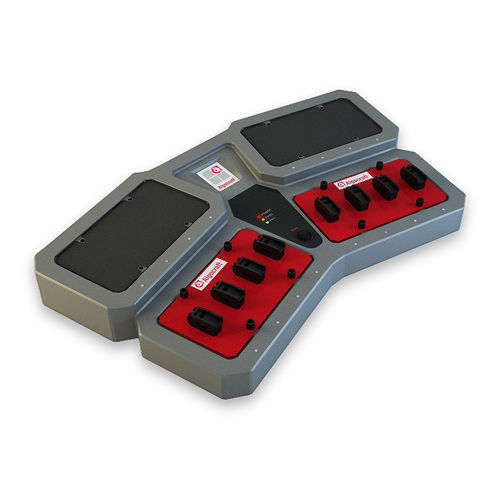

Flash memory programmer Write!BEFORE

RS232USB 2.0LAN

-Based on Algocraft WriteNow! Technology -Excellent performances -Supports FLASH microcontrollers & serial memories -Up to Eight devices programmable at once -Device-Specific Programming Socket -Standalone operations or host controlled -Supports multiple package (DIP, SOIC, TQFP, BGA, etc) Overview Based on the proprietary Algocraft WriteNow! Technology, the Write!BEFORE Programming System is a full featured,high-performance, multiple programming system specific for serial memories and microcontrollers.Write!BEFORE supports the concurrent programming of up to eight devices; different device packages can be accommodated through DIP, SDIP, SOIC, PLCC and QFP adapters. Write!BEFORE works in standalone or connected to a host PC (RS-232, USB, LAN), and are provided with easy-to-use software utilities.The Write!BEFORE hardware has two separate sections: a single, universal base unit, ready to support current and future devices, and a number of device-specific socket adapters Hardware Features -Universal and upgradable base unit -High-speed I/O -High-speed, parallel programming -Memorizes data on a built-in memory card -Programmable I/O voltage (1.6-5.5V) -Standalone operations or host controlled -Supports multiple package (DIP, SOIC, TQFP, BGA, etc) -8-Sites Programming Socket -START button, PASS/FAILS LEDs Applications -Off-board programming -Sochet gang programmer Software Features -Project Wizard: creates and debugs a programming Project in fews guided steps very easily -File Merge: combines different programming data sources (boot, application, variable data, etc.) in a single output file
