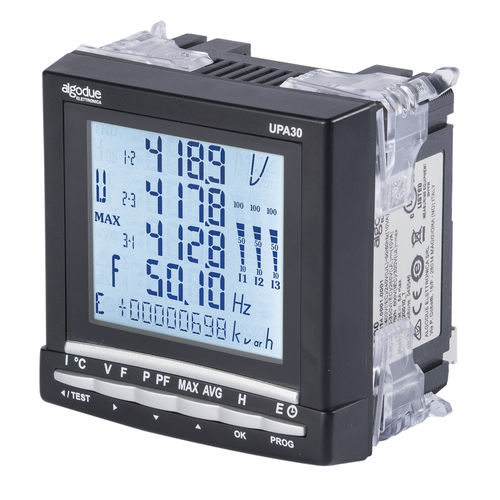

Monitoring analyzer UPA30

for electrical networkstemperaturepower

UPA30 and UPA41 are performance metering & monitoring devices that provide all of the measurements needed to complete energy efficiency projects and to assure the monitoring of electrical distribution. It is particularly suitable for consumption analysis and control, with an excellent quality/price ratio. With its large backlit multiple-display screen with 6 hot keys, the instrument is easy to use. Furthermore, it is provided with a correction function for CT wiring errors. The instrument can be equipped with additional modules that give flexibility throughout the service life of the product. Modules for RS485 communication, additional digital or analogue inputs/outputs and temperature detection can be used to increase its range of functionality. DIN 96x96 multifunction meter for energy monitoring • DIN 96x96 compact version • Main electrical parameters measured and displayed for a cost-effective consumption analysis • For current transformers (not included) • Programmable VT • Wiring error detection • Display of predective power values • Available optional plug-in modules for communication, inputs/outputs, temperature • Active energy class 0,5 S according to IEC 62053-22 • Compliant with IEC 61557-12, the reference standard for PMDs (Performance Metering & monitoring Devices) • UL listed product - UL no. E231725
