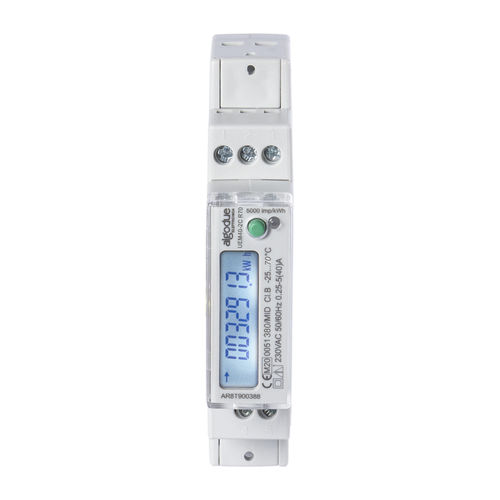

Single-phase electric energy meter UEM40-2C R70

DIN rail50 HzRS-485

40A single phase energy meter with built-in communication • For RS485 Modbus RTU communication • Direct connection up to 40 A • Up to 70°C operating temperature • Fully bi-directional 4-quadrant measurements for all energies and powers • High reliability • 1 DIN module compact size • Quick installation • S0 output for energy pulse emission • LCD display with 7 main digits • Available with MID certification Besides the energy, the meter can measure the main electrical parameters and makes them available on the display and on the built-in COM port. The COM port allows to manage the connected meter by a remote station and data is transmitted on a RS485 line. Moreover, a dedicated application for remote management is provided: • Modbus Master software > for energy meter management by PC in RS485 Modbus network. Backlighted LCD display with clear graphic symbols comprehensible at a glance. Metrological LED on front panel and sealable terminal covers. The analysis of the MTBF values, the accurate selection of components and the reduction of the internal working temperatures together with strict production and control standards guarantee a product with an excellent quality and a long lasting reliability.
