Hydraulic fitting FLT
screw-inTDIN

hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
screw-in
Configuration
T
Norms
DIN
Material
PE
Other characteristics
compact, reduction, flange, transfer, transition
Diameter

Max.: 180 mm
(7.087 in)

Min.: 80 mm
(3.15 in)

Operating pressure

10 bar, 16 bar
(145.04 psi, 232.06 psi)

Description

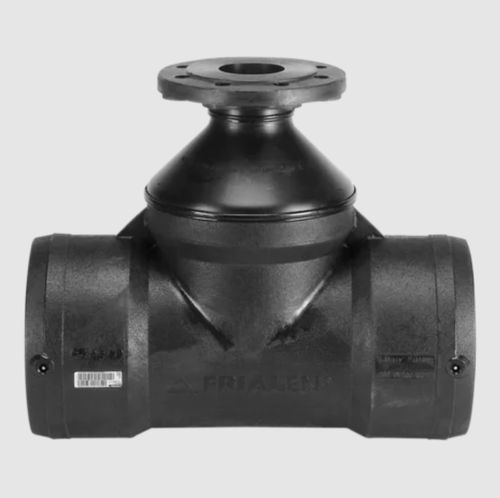

Flange T-piece TFL Water Material; PE 100 and metal insert Safety technology Note: Reduction and fusion flange. Metal insert in flange in order to prevent cold flow. We recommend GST seals. Note the screw tightening torques after specifying the seal manufacturer or DVS. Areas of Application The FRIALEN Flange T-Piece is used for the transition between HD-PE pipes to pipes or valves made from metal. The main area of application of the FRIALEN Flange T-Piece is the hydrant connection. For a branch line in DN 80 you can flange directly a shut-off valve. Other nominal diameters can be also realised with the FRIALEN T-Piece1) in combination with FRIALEN flange reducer FLR respectively if the nominal diameter is equal with the FRIALEN Full faced flange EFL2). Assembly Instructions The Flange T-Piece is installed only in pressure-free condition. Please refer to the FRIALEN-Assembly Instructions with regard to the preparations of the T-Piece in the direction of the passage opening with HD-PE pipes (marking of insertion depth, removing oxide skin, cleaning, etc.) for FRIALEN fusion. Flange connection measurements correspond to DIN EN 1092-1. Supplementary washers are necessary. All standard profile or flat gaskets can be used. Please observe screw torque specifications as indicated by the gasket manufacturer. We recommend G-ST gaskets. Good reasons for using the FRIALEN Flange T-Piece FLT: Compact part in HD-PE for direct connection to flanged valves and hydrants Factory made combination made from FRIALEN T-Piece, Reducer and Weld in flange (fixed flange)
