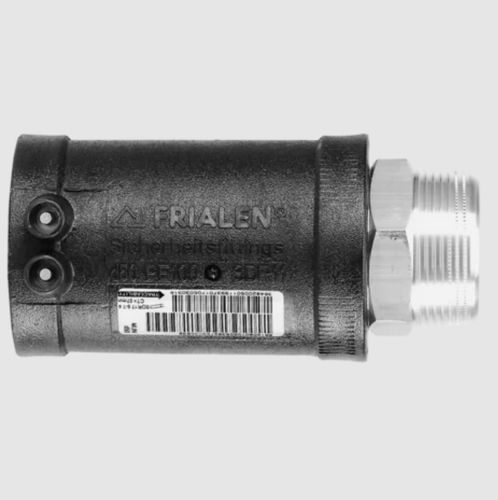

Wastewater fitting MUN

threadedHDPEbrass

Brass pipe transition fitting MUN Water Material; PE 100 and brass [EN 12168 - CW617N, thread according to EN 10226-1] Safety technology Note: The brass side is anchored as non-detachable and non-rotatable in PE. Self-sealing, patented sealing geometry without elastomeric seal for utilisation in water areas. Default: Brass, gunmetal on request. Other thread dimensions available on request. Areas of Application FRIALEN-Transition Fittings MUN are threaded joints as an adaptor from a metal pipe with internal thread to a HD-PE pipe. Joint on the part of HD-PE by FRIALEN-Coupler. Assembly Instructions The threaded component must be held with a spanner to prevent it twisting in the HD-PE component. The fusion of the HD-PE side takes place by FRIALEN-fusing – leakproof and longitudinally strong. The installation of the brass and the HD-PE side has to be prepared according to the general installation instructions (see ”Transition Fittings with threaded connection” in ”Assembly Instructions” for ”FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends. Good reasons for using the FRIALEN-Transition Fittings MUN: Compact construction HD-PE side with exposed heating element for optimal heat transfer Cold zones at the end to prevent the flow of molten material No holding clamps required Large insertion depth, extra wide fusion zones Brass end permanently anchored in the HD-PE and will not distort Self sealing patented sealing geometry without elastomer seal Additional barcode for tracing back the fitting (Traceability-Coding)
