90° pipe elbow WF

PE

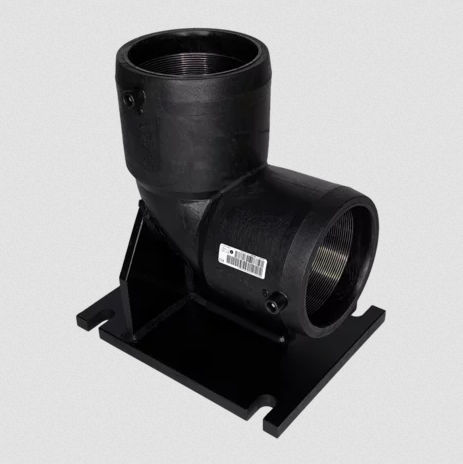

Elbow with base unit WF SDR 11 Water Assembly on the foundation possible Safety technology DVGW Registration No.: DV-8606AU2249 Note: Ideal for the hydrant connection adjacent to main pipe. Extra spigot for connection to the house for continuous flow. Areas of Application The FRIALEN-Elbow with Base Unit WF 90° allows for connection of a hydrant alongside the mains. The hydrant connection takes place either by fusing the HD-PE pointed end of the hydrant with the construction part or for a hydrant with flange connection by applying the FRIALEN-Full Faced Flange EFL* or with a Flange Reduction FLR** d 110/DN 80. Connection to the HD-PE mains takes place without pressure via the FRIALEN-Spigot Saddle SA d 110/90-225/110 (see Data Sheet No. 27 and leaflet) or under operating pressure with an additional cut-off device. For drilling into the mains we recommend drilling equipment by Hütz + Baumgarten. Assembly Instructions Please refer to the FRIALEN “Assembly Instructions” for preparations for the FRIALEN-fusion process (two fusion procedures) of the elbow piece with HD-PE pipes or HD-PE pipe and HD-PE valve (marking insertion depth, removing oxide skin, cleaning, etc.). Good reasons for using the FRIALEN-Elbow with base unit WF 90°: Great wall thickness ensures optimum stability and safe positioning of the hydrant Separate fusion zones enable simple tension-free fusion Floor plate can be mounted directly onto foundations Base unit and elbow make up a homogeneous unit Large coupler depth for ease of guidance of pipe and construction part Small annular gap for build-up optimum joining pressure in the fusion zone Cold zones
