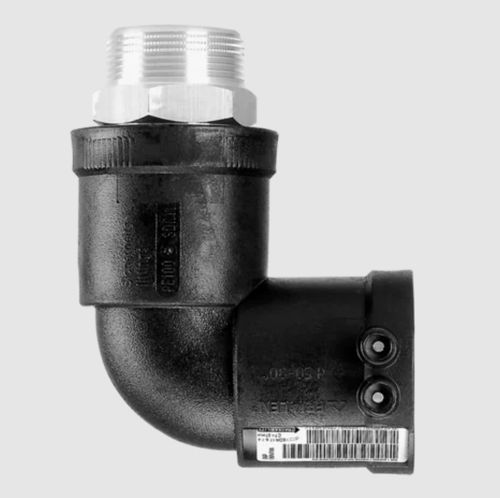

Stainless steel pipe elbow WUN V2A 90

90°PE

Transition elbow V2A pipe WUN V2A 90 Water Maximum pressure: Water 16 bar Material; PE 100 and V2A [EN 10278 ; EN 10088-3 - 1.4305 -X8CrNiS18-9, thread according to EN 10226-1] Safety technology Note: V2A side is anchored in the PE so that it cannot be rotated. Self-sealing, patented sealing geometry without elastomeric seal for utilisation in water areas. Areas of Application FRIALEN-Transition Elbows WUN-V2A 90° are threaded joints as an adaptor from a metal pipe with internal thread to a HD-PE pipe. Joint on the part of HDPE by FRIALEN-Coupler. The threaded joint is made of stainless steel (Material St. 1.4305 / X8CrNiS18-9). Assembly Instructions During assembly, only a spanner applied to the provided metal hexagon must be used to screw the component into its metal counterpart. The fusion of the HD-PE side takes place by FRIALEN-fusing – leakproof and longitudinally strong. The installation of the stainless steel and the HD-PE side has to be prepared according to the general installation instructions (see ”Transition Fittings with threaded connection” in ”Assembly Instructions” for ”FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends. Good reasons for using the FRIALEN-Transition Elbows WUN-V2A 90°: Compact construction HD-PE side with exposed heating element for optimal heat transfer Cold zones at the end to prevent the flow of molten material No holding clamps required Large insertion depth, extra wide fusion zones Stainless steel end permanently anchored in the HD-PE and will not distort Self sealing patented sealing geometry without elastomer seal
