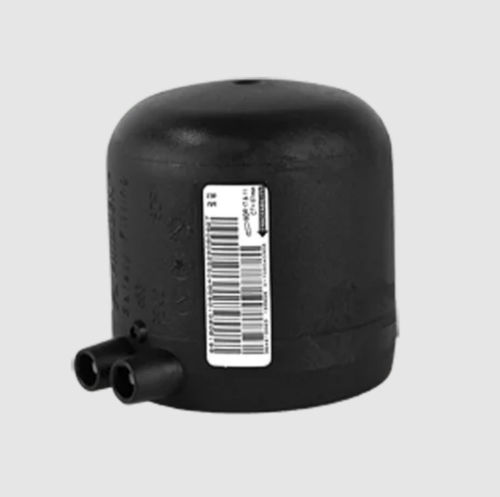

Round cap MV DTS 11

PE

Cap MV SDR 11 Gas, water and H2 Safety technology DVGW test mark: DV-8601AU2248 and DV-8606AU2249 Areas of Application The FRIALEN-End Caps MV are used to close HD-PE pipe ends. Also recommended as fused caps (d32 and d40) for the dome of FRIALEN-Pressure Tapping Tees DAA and DAP up to d63. Assembly Instructions The fusion of a pipe end or the dome of a FRIALEN-Pressure Tapping Tee with the FRIALEN-End Cap MV takes place using FRIALEN-fusing – leakproof and longitudinally strong. The fusion area is prepared according to the general installation instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends. Next to moulded fittings and accessories it is recommended to install a piece of pipe of 20 - 60 cm length, accordingly to the diameter, so that the pipeline can be continued later on. Good reasons for using the FRIALEN-End Caps MV: Large coupler depth for ease of pipe guiding (no holding clamps required) Extra wide fusion zones Maximum stability through great wall thickness Cold zones at the front side and in the middle of the coupler Exposed heating coil for direct heat transmission to the pipe Small annular gap for build-up of optimum joining pressure in the fusion zone Touch proof electric contacts Fusion indicator for visual fusion control Durable batch marking Individually wrapped for dirt protection Additional barcode for tracing back the fitting (Traceability-Coding)
