Hydraulic fitting TA RED

for gassocketT

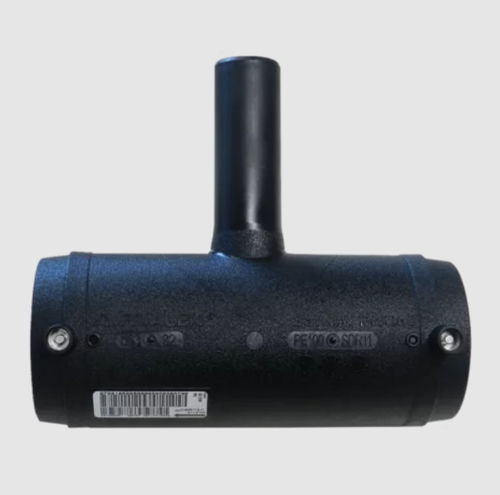

T-piece TA RED SDR 11 with reduced spigot Gas, water and H2 Reduced spigots Safety technology DVGW test mark: DV-8601AU2248, DV-8606AU2249 and DV-8611AU2250 Areas of Application The FRIALEN reduced TA red pieces are used for pipe outlets of HD-PE pipelines. Assembly Instructions The fusion of the pipe ends with the FRIALEN TA red takes place by FRIALEN-fusing – leakproof and longitudinally strong. The pipe ends are prepared (removing the oxide layer/cleaning) according to the general installation instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). Good reasons for using the FRIALEN TA red: Large coupler depth for ease of pipe guiding (no holding clamps required) At dim. up to d1 63, Length of outlet spigot dimensioned for two fusion operations Extra wide fusion zones Maximum stability through great wall thickness Cold zones at the front side and in the middle of the coupler Exposed heating coil for direct heat transmission to the pipe Small annular gap for build-up of optimum joining pressure in the fusion zone Touch proof electric contacts Durable batch marking Individually wrapped for dirt protection Additional barcode for tracing back the fitting (Traceability-Coding)
