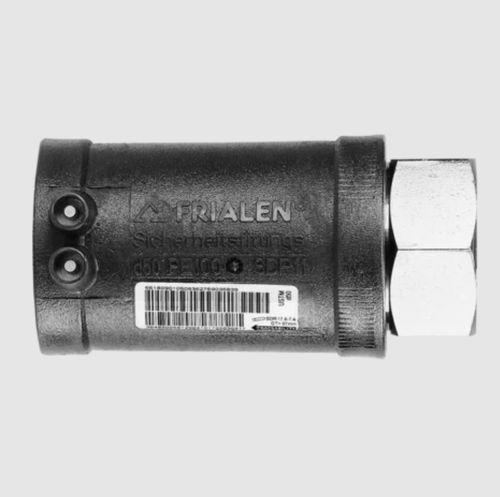

Gas fitting USTM

screw-inPEfemale

Transition fitting HD-PE/steel with female thread Transition fitting steel pipe USTM Material; PE 100 and steel [EN 10278; EN 10277-3 - 11SMn30+C -, thread to EN 10226-1] Safety technology Anchored the steel side non-detachable and non-rotatable in the PE. Self-sealing, patented sealing geometry without elastomeric gasket for use in gas applications. Other thread dimensions available on request. Areas of Application FRIALEN-Transition Fittings USTM are threaded joints as an adaptor from a metal pipe with external thread to a HD-PE pipe. Joint on the part of HD-PE by FRIALEN-Coupler. Assembly Instructions The threaded component must be held with a spanner to prevent it twisting in the HD-PE component. The fusion of the HD-PE side takes place by FRIALEN-fusing – leakproof and longitudinally strong. The installation of the steel and the HD-PE side has to be prepared according to the general installation instructions (see ”Transition Fittings with threaded connection” in ”Assembly Instructions” for ”FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends. Good reasons for using the FRIALEN-USTM: Compact construction HD-PE side with exposed heating element for optimal heat transfer Cold zones at the end to prevent the flow of molten material No holding clamps required Large insertion depth, extra wide fusion zones Steel end permanently anchored in the HD-PE and will not distort Self sealing patented sealing geometry without elastomer seal Additional barcode for tracing back the fitting (Traceability-Coding)
