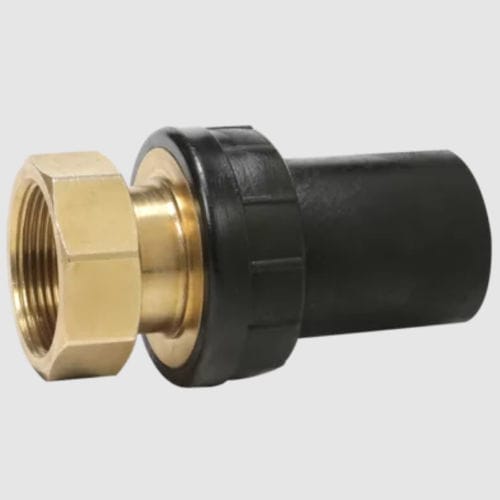

Hydraulic adapter UAM ET

for pipethreadedPE

Universal transition adaptor brass pipe UAM Water and gas Material; PE 100 and brass [CW617N / CW612N, ISO 228 thread] Note: The brass side is anchored non-detachable and non-rotatable in the PE. Installation independent of position possible. For use in the water and gas sector. Other thread dimensions available on request. Areas of Application The FRIALEN Universal Adapter UAM serves to connect metal construction parts which have a screwed connection e.g. valves with an HD-PE connection pipe. Suitable for gas and water supply or for industrial applications. The version with PE spigot end allows for assembly regardless of location and the homogenous fusion connection with all suitable FRIALEN fittings (exception of FRIALONG- and FRIASTOPP-Long couplers). The threaded joint is according ISO 7-1. Assembly Instructions Usually the screw connection needs to be assembled first as assembly related torsion forces should not bear down on the connected PE pipe. The tightening forces must be introduced via the specially designed wrench area. The fusion of the PE spigot end with a FRIALEN coupler takes place by using FRIALEN fusion process – leakproof and longitudinally strong. The installation is according to the general installation instruction (see ”Transition Fittings with threaded connection” in ”Assembly Instructions” for ”FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide layer and cleaning the pipe ends. Good reasons for using the FRIALEN-Universal Adapter UAM: PE 100 spigot end – quality controlled Tested and quality controlled brass quality Assembly regardless of location, high degree of
