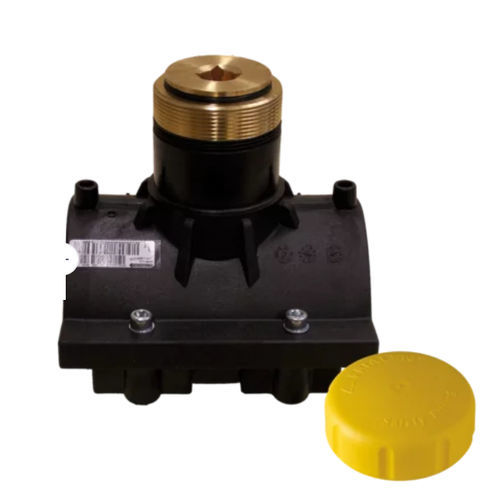

Tube saddle SPA

PE

Balloon shut off saddle SPA Gas, water and H2 Maximum pressure: Water 16 bar; Gas 10 bar Material; PE 100 and brass Saddle component with clamp Safety technology Note: Brass female and male threads are anchored in the HD-PE in a non-detachable and non-rotatable manner. Including brass plug with recessed square. For the accommodation of commercially available balloon setting devices. Access protection for the dome by means of the supplied screw cap or by fusion on a FRIALEN SPAK (for d 63 by cap DK, Order No. 612310 ). When using hydrogen, the SPA Balloon shut off saddle is only in conjunction with the cap SPAK (Order No. 612311). Good reasons for using the FRIALEN-Shut off Saddles SPA: Compact construction HD-PE saddle with exposed heating element for optimal heat transfer Compact part suitable for normal commercial shut off equipment and for tapping of the mainpipe Long and solid brass-external thread for a safe connection of the shut off equipment Brass-internal thread for a safe sealing by using a plug, permanently and immovable anchored in the HD-PE Includes brass plugs with square recess Protection against access to the dome by fusing on a FRIALEN SPAK or K DVGW registered Additional barcode for tracing back the underground fitting (Traceability-Coding)
