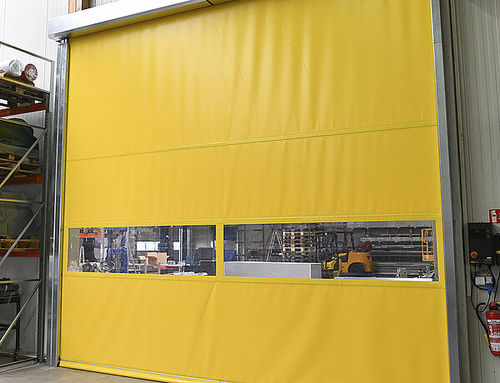

Roll up door ALIGA-Rapida VZ
plasticPVCfabric

Roll up door - ALIGA-Rapida VZ - Aliga-Tor GmbH - plastic / PVC / fabric
Roll up door - ALIGA-Rapida VZ - Aliga-Tor GmbH - plastic / PVC / fabric
Add to favorites
Compare this product


Characteristics

Type
roll up
Material
fabric, plastic, PVC
Other characteristics
high-speed, safety
Wind rating
class 2
Applications
indoor, industrial
Width

Max.: 5,500 mm
(217 in)

Min.: 1,000 mm
(39 in)

Height

Max.: 5,500 mm
(217 in)

Min.: 1,000 mm
(39 in)

Description

The ALIGA-Rapida VZ is a vertical rapid aktion door for industrial use. Originally developed for indoor use, the door can also be used outdoors up to wind class 2 without any problems. Thanks to the high opening speed and the perfectly coordinated closing speed, the ALIGA-Rapida VZ minimizes waiting times and thus effectively increases work processes. Starting from the basic version, a combination with any command devices, safety devices or curtain variants is possible. This enables operation in a wide variety of production environments. The ALIGA-Rapida VZ: Fast, safe and economical. Product Details Suitable for indoor and outdoor use Standard size up to 5500 x 5500 mm (clear width x clear height) Further dimensions possible on request Opening speed: Adjustable up to approx. 2.5 m/s Closing speed: Approx. 1.5 m/s Construction Mechanical components made of galvanized steel Tension spring or counterweight integrated in the side panels Motor and shaft cover optionally available Anti-Crash System Emergency opening function according to ASR 1.7 possible Curtain Door curtain made of tear-resistant PES fabric (thermoplastically high-performance plastic) Windows made of transparent PVC or fully transparent curtains are available Wind resistance class according to EN 12424: Class 0-2 possible 9 standard colors as well as customer-specific color selection or printing possible There are many standard colors to choose from for the ALIGA Rapida door series: green, yellow, orange, red, blue and 4 different shades of gray. Safety Devices / Electrical Equipment Frequency converter door control with digital display

Catalogs
