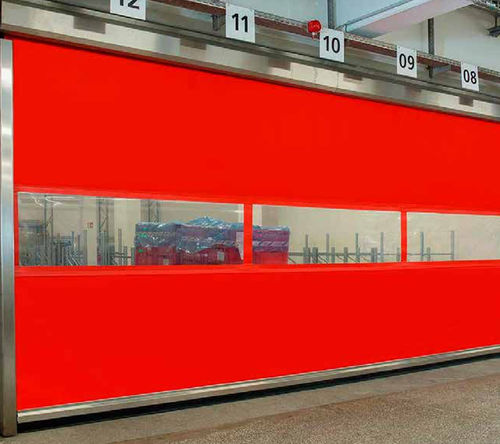

Roll up door

plasticstainless steelfabric

Vertical rapid action door for the refrigerated area, especially for the food industry. The newly developed ALIGA-Cooler Food is suitable for use in fresh and cold rooms as cold as 0°C. It combines the advantages of a rapid action door with the positive properties of an insulating door. Developed according to the requirements of DIN 1672 for “Hygienic Design”, there are many details for manufacturers to consider: from the choice of materials to the individual system components. Because all mechanical components are made of V2A stainless steel, it is resistant to cleaning agents used in the food industry. The insulated curtain ensures that less cold air escapes from the cooling areas. In this way, energy costs can be reduced sustainably. Die Dichtung der ALIGA-Cooler-Serie im Detail Three-layer insulated and sealed all round Product Details Suitable for indoor use Further dimensions possible on request Opening speed: Adjustable up to approx. 2.5 m/s Closing speed: Approx. 1.5 m/s Construction Mechanical components made of V2A stainless steel Tension spring or counterweight integrated in the side panels Motor and shaft cover included Anti-Crash System Emergency opening function according to ASR 1.7 possible Curtain HochisolieHighly insulating, specially manufactured foam core Three-layer insulated and sealed all round Door curtain made of tear-resistant PES fabric (thermoplastically high-performance plastic) Wind resistance class according to EN 12424: Class 0-2 possible 9 standard colors as well as customer-specific color selection or printing possible
