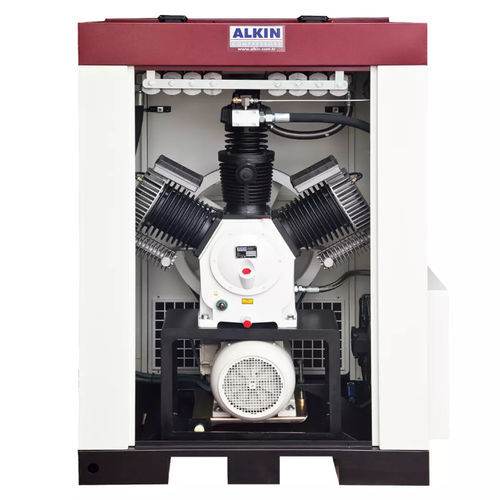

Medium-pressure compressor 524 Canopyreciprocatingairelectrically-powered
Add to favorites
Compare this product
Characteristics
- Technology
- reciprocating
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial, for the petrochemical industry, for heavy-duty applications, for marine applications
- Applications
- process, for PET plastic bottle manufacturing, for packaging, for offshore applications, for underground mining, gas, for PET bottles, for PET bottles, PLC
- Other characteristics
- air-cooled, electric, medium-pressure, two-stage
- Pressure
40 bar
(580.15 psi)- Flow
930 l/min, 1,225 l/min
(245.68 us gal/min, 323.61 us gal/min)- Power
11 kW, 15 kW
(14.96 hp, 20.39 hp)- Length
111 cm
(44 in)- Width
77 cm
(30 in)- Height
160 cm
(63 in)- Weight
530 kg, 550 kg
(1,168.4 lb, 1,212.5 lb)
Description
Compressors in the medium pressure series deliver compressed air up to 80 bar safely and effectively. These compressors have two-stages, reciprocating, air-cooled, splash lubricated design that combines technology and high quality.
Alkin Compressor reserves the right to change the information and pictures in its brochures without prior notice.
Standard Features
Intercooler and Aftercooler (Stainless)
2nd Stage Water Separator
Safety Valve at Each Stage
Check Valve
Manometers for Input and Output Pressure
Pressure Switch for Automatic Start/Stop
Solenoid Valve
Oil Level Switch
Electrostatic Painted Chassis
Oil Level Glass
Thermal Overload Protection for Electric Motor
Shock Mounts
Control and Electrical panel: YΔ Panel, Main Switch, On/Off Buttons, Hour Counter, Emergency Stop Buttons, Control Leds
Optional
PLC Touch Screen Control System
Stainless Chassis
Sectors
Shipyards
Pet Bottle Filling Industry
Industrial Applications
Gas Filling Facilities
Military Applications
Test Equipment
