Automatic filling machine DHA series

multi-containerfor powdersfor granulates

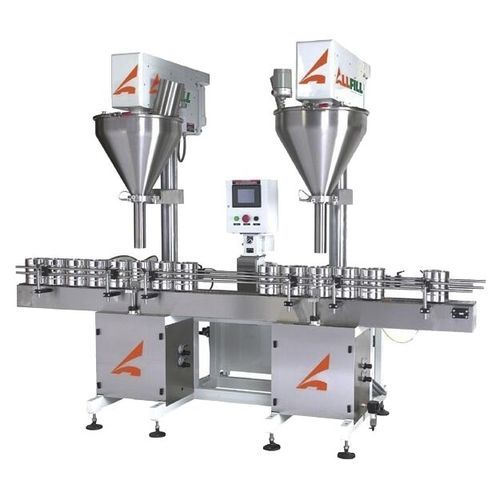

All-Fill’s Model DHA automatic auger filler is a complete, economical solution to your filling production requirements. It consists of the industry-proven All Fill filling heads, conveyor mounted on a sturdy frame, and container indexing controls that reliably move and position for filling. This auger filler also includes an Allen Bradley PLC control system with a touchscreen that provides precise selection and adjustment of fill amounts and machine functioning. Providing easy setup, operation, and monitoring of the filling operation. Construction - Painted aluminum base. Anodized aluminum. Stainless steel contact parts. Sturdy tubular steel frame to support filling head and conveyor. Includes mechanical jack to raise/lower fill head. Aluminum head castings with one-piece stainless steel covers. Heavy-duty clutch-brakes or servo direct drives. Production Rates - Speeds ranging up to 180 CPM, application dependent Control Features - 7" color touchscreen HMI. A speed adjustable belt drive and continuously-operating fill motor provides the torque and high cycle rates necessary for production filling. Product level control. Slow speed agitation. Motor starters and transformer. Adjustable frequency vibration to settle product in container. Accepts standard All-Fill accessories. In line All-Fill Checkweigher with feedback to filling heads for instantaneous adjustment of filled amounts. Adjustable guide rails. Variable speed. Storage - 100 product memory Hopper Capacity - 16 gal. hoppers with dustproof cover and 6" infeed duct
