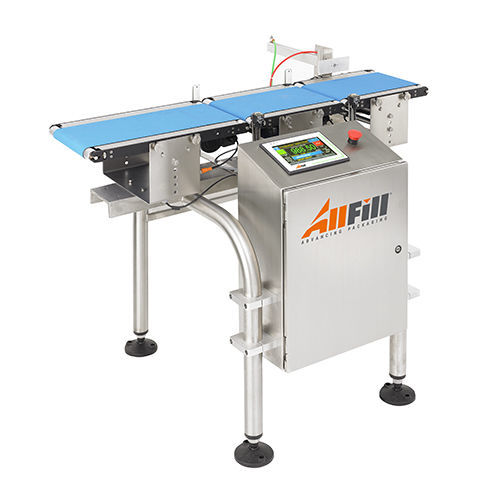

Packaging checkweigher EW-8

for the food industryfor the pharmaceutical industrywith belt conveyor

Model EW/8 is All-Fill’s economical solution for users and applications that may only require an entry level checkweigher. The EW/8 offers 0.5g resolution. Utilizing a strain gauge load cell for weighing packages up to 5 lbs and operating at speeds of up to 120 packages per minute, makes the EW/8 just as versatile and reliable as other All-Fill models. Line Speeds - Variable, from 60 to 220 FPM, 100 packages per minute Accuracy - ±1-3 gram, depending on application Package Weights - Up to 5 lb. per package Package Dimensions - 15” (381 mm) long by 10” (254 mm) wide; other sizes available Construction - Tubular stainless steel frame (standard) Direction of Travel - Left to Right or Right to Left Conveyor Belts - Variable speed, 8” wide x 12” long, 8” wide x 18” long Weight Indicator - 3 light tower (accept, overweight, underweight) Controls - Front mounted control box (standard) Simplified 5.7” full color touch screen HMI with embedded microprocessor controller 25 program memory Control Mounting - Front-mounted
