Coaxial cable feedthrough 242-SMAD50-C16
high-frequency cableflangevacuum

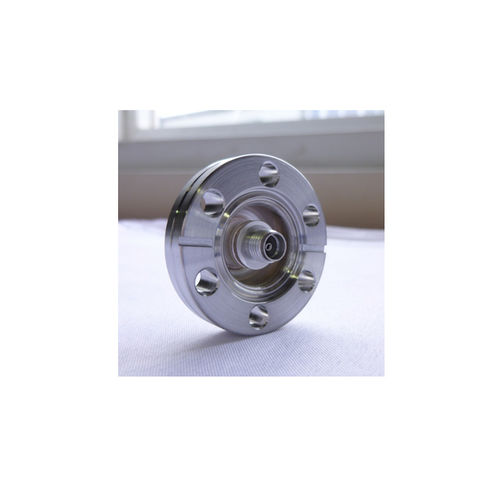

Coaxial cable feedthrough - 242-SMAD50-C16 - Allectra.com - high-frequency cable / flange / vacuum
Coaxial cable feedthrough - 242-SMAD50-C16 - Allectra.com - high-frequency cable / flange / vacuum
Coaxial cable feedthrough - 242-SMAD50-C16 - Allectra.com - high-frequency cable / flange / vacuum - image - 2
Add to favorites
Compare this product


Characteristics

Product applications
for coaxial cables, high-frequency cable, flange, vacuum
Configuration
single-element
Protection level
insulated

Description

DN16CF SMA FEEDTHROUGH, 50 OHM, DOUBLE SIDED, GROUNDED SHIELD, 1000V DC, 3A MAX, 6.5 GHz Co-axial Feedthroughs .Specifications Vacuum Leak Rate - UHV <5x10-10 mbar l/s Size or DN - DN16CF (1.33” OD flange) Compliance - SMA 50 ohm Number of Pins - 1 Vacuum Seal - Ceramic Body Material - Stainless Steel Voltage Rating - 1 kV DC Max Current - 3 Amps per pin Temperature Range - -200°C to 300°C (Air side Connector -65oC to 165oC) Impedance - 50 ohms
