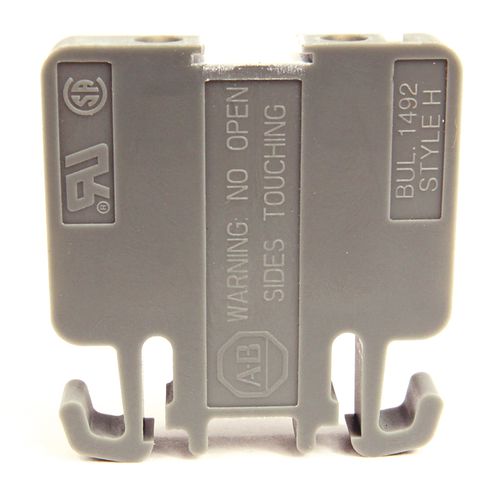

DIN rail-mounted terminal block 1492 seriesscrew connectionIECfused
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- screw connection
- Other characteristics
- IEC, fused, compact, finger-safe, with integrated surge protection
- Cross-section
Max.: 6 mm²
(0.01 in²)Min.: 0.5 mm²
(0 in²)- Current
Max.: 269 A
Min.: 6 A
- Nominal voltage
Max.: 800 V
Min.: 300 V
Description
Our Bulletin 1492 High-density Finger-safe Terminal Blocks fall between the open-style NEMA/EEMAC terminal blocks and full-function IEC style terminal blocks. Our compact design (1492-HM2) can accommodate up to 100 terminations per foot.
• Recessed terminals
• Backed-out screws
• Multi-rail mounting feet
• 11 colors available
