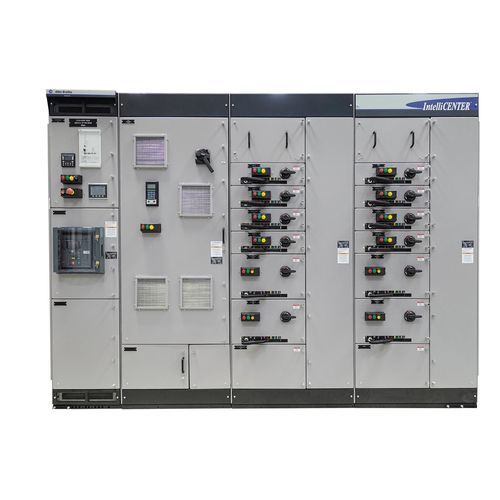

AC motor control center CENTERLINE® 2500

AC motor control center
AC motor control center
AC motor control center
AC motor control center
Add to favorites
Compare this product


Characteristics

Options
AC

Description

Our CENTERLINE® 2500 IEC low voltage motor control centers (MCCs) pass rigorous certification processes to meet application requirements around the world. Designed with a smaller footprint, the MCCs meet the global demand for factory-ready, energy- and cost-efficient industrial motor control solutions. CENTERLINE 2500 MCCs with a PowerFlex® 750- and 520-series variable frequency drive can now support functional safety ratings as a standard order. This includes SISTEMA files and support subsystems up to SIL 3, PLe, CAT 4, making it easier to design and install a safety system. • PowerFlex 750 subsystems up to SIL 3, PLe, CAT 4 • PowerFlex 525 subsystems up to SIL 2, PLd, CAT 3 • Direct On-Line reversing and non-reversing up to SIL 2, PLd, CAT 2 • Direct On-Line reversing and non-reversing up to SIL 3, PLe, CAT 3 (available by end of 2022) • Single/Multiple Motor Safety Zones up to SIL 3, PLe, CAT 4 • Networked/Software Configurable Safety Zones up to SIL 3, PLe, CAT 4• Meets IEC 61439-1, 61439-2 • Offers current rating up to 4000 A • Offers short time rating (lcw) up to 100 kA • Provides operating voltage up to 690V • Provides enclosure rating up to IP54 • Includes arc fault containment per IEC/TR 61641 • Includes designs for fixed or withdrawable units • Select high density fixed units when floor space is limited • Select fully withdrawable units for fast replacement • Provides high unit density to optimize column space • Offers a variety of intelligent motor control options • Offers fully type tested standard designs
