- Dry screening screener
- ALLGAIER PROCESS TECHNOLOGY

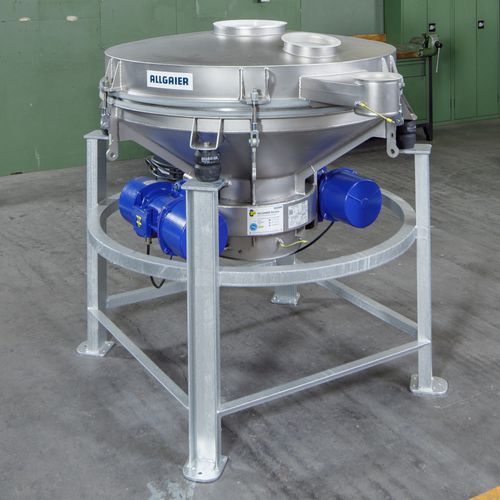

Dry screening screener VIBRALLfor miningfor powder recyclingfor the food industry
Add to favorites
Compare this product
Characteristics
- Function
- dry screening
- Applications
- for mining, for powder recycling, for the food industry, process, for pharmaceutical applications, control, for the pharmaceutical industry, for separating trimmings and shavings, chemistry, for wood, for the wood industry
- Type
- vibrating
- Material
- for bulk materials, for ceramic
- Protection class
- ATEX
- Other characteristics
- compact, stainless steel, 3-deck, 2-motor, 2-deck, interchangeable
- Weight
Max.: 510 kg
(1,124 lb)Min.: 75 kg
(165 lb)- Opening of the mesh
Min.: 0.5 mm
(0 in)- Screening surface
Max.: 2.6 m²
(28 ft²)Min.: 0.2 m²
(2.2 ft²)- Engine power
Max.: 2.2 kW
(2.99 hp)Min.: 0.34 kW
(0.46 hp)
Description
Vibration Screening Machines Vibrall
High throughput control screening with Vibration Screening Machines Vibrall
The Allgaier Vibration Screening Machine Vibrall is used for protective and control screening of free-flowing bulk materials in all branches of industry. Due to the central arrangement of material feed and fine material discharge, the Vibration Screening Machine Vibrall is particularly suitable for use in vertical conveyor systems with high conveying capacities.
Functionality:
The drive of the Vibration Screening Machine Vibrall consists of 2 unbalance motors with pairs of unbalances offset from each other. Circular movement from the inside to the outside enables efficient foreign body separation or protective screening.
Benefits:
Maximum flexibility: Up to 2 decks and 3 fractions can be set. Screening area sizes from 0.20 m2-2.60 m2 can be used. Fixed installation or mobile, with counter swing frame possible.
High performance: Throughput up to 200 t/h.
Compact design: High-quality surface finish for the pharmaceutical and food industries.
Robust design: With internal seals, gas-tight up to 50 mPa.
