- Dry screening screener
- ALLGAIER PROCESS TECHNOLOGY
Vibrating screener VTSdry screeningwet screeninghumid screening
Add to favorites
Compare this product
Characteristics
- Function
- dry screening, wet screening, humid screening
- Applications
- for mining, for the wood industry, for powder recycling, for the food industry, chemistry, process, for pharmaceutical applications, wet, control, drainage, dry particulate, for wood, for separating trimmings and shavings, for the pharmaceutical industry
- Type
- vibrating, tumbler
- Material
- for bulk materials, solid/liquid, for ceramic
- Protection class
- ATEX
- Other characteristics
- compact, stainless steel, 4-deck, 2-deck, single motor
- Weight
Max.: 695 kg
(1,532 lb)Min.: 140 kg
(309 lb)- Screening surface
Max.: 1.6 m²
(17.2 ft²)Min.: 0.3 m²
(3.2 ft²)- Engine power
Max.: 2.2 kW
(2.99 hp)Min.: 0.3 kW
(0.41 hp)
Description

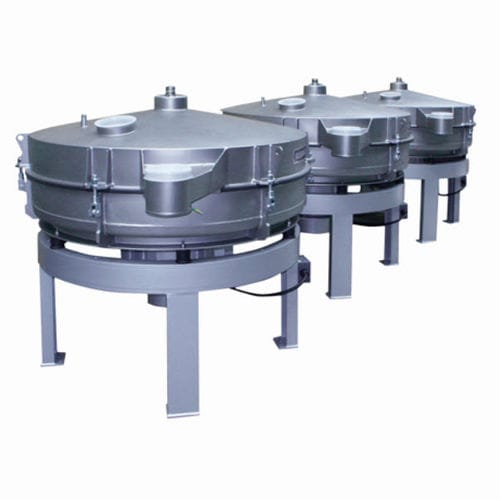

Vibration Tumbler Screening Machines VTS
Wide range of applications of Vibration Tumbler Screening Machines VTS in dry and wet screening
The Allgaier Vibration Tumbler Screening Machines VTS is suitable for wet screening as well as for the economical processing of almost all bulk materials in the fine, medium and coarse grain range. By simply adjusting the oscillating motion, screening quality and throughput can be adjusted to your individual requirements.
Functionality:
The drive is provided by a vibration motor which, by suitable adjustment of the flyweights, generates a horizontal and circular wobbling motion. This causes the screenings to move in a spiral from the inside to the outside.
Benefits:
Maximum flexibility: The modular system allows for dry and wet screening as needed. Up to 3 decks and 4 fractions are adjustable. Screening area sizes from 0.28 m2-1.59 m2 are applicable.
Minimal process costs: Low energy consumption and low foundation loading.
Robust design: With internal seals, gas-tight up to 50 mPa.
Maximum plant availability: Long service life of the screen cloths.
Simple assembly: Simple and fast screen change is possible.
