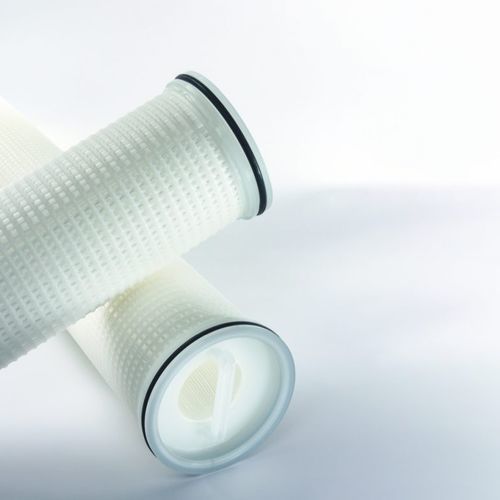

High-flow filter cartridge

waterfinepolypropylene

High flow pleated cartridges combine the best of pleated and large diameter cartridges. The unique multi-layered construction provides absolute rated particle retention across a wide range of flow rates with efficiencies of 99.98% at the designated micron rating. The large diameter yields much higher flow rates compared to traditional 2.5” diameter filters, permitting use of fewer elements and lowering capital expenditure. Contrary to standard filter cartridges, high flow pleated filters most commonly have an inside to out liquid flow direction, enabling particles to be collected on the cartridge’s interior. The cartridges have an injection moulded top end cap with integral moulded handle to assist cartridge removal. Polypropylene or borosilicate (glass fibre) filter media. Polypropylene support and drainage layers. Polypropylene core and end caps. 1 to 100 micron. Standard lengths : 20”, 40”, 60” Outside diameter 152mm, inside diameter 74mm. Food contact compliant version available. Maximum recommended flow rate : 40m3/hr for 20” length. 80m3/hr for 40” and 60” lengths. Maximum recommended temperature : 80o Maximum differential pressure : 4.8 Bar at 25oC, 2.1 Bar at 80o Recommended change-out pressure 2.4 Bar. Choice of seals : EPDM, Buna-N, Viton, Silicone.
