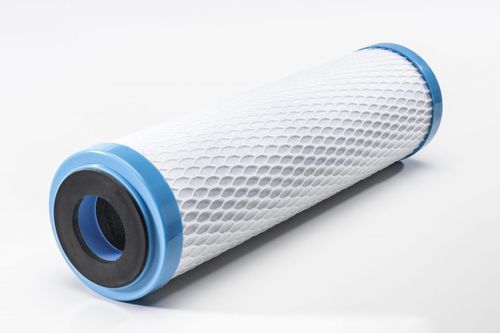

Water filter cartridge ECB, SCB

finecarbonfor general purposes

The ECB series uses the latest carbon manufacturing techniques making it the economic choice for a wide range of industrial water applications. The ECB is ideally suited to processes where the life of the carbon is never fully utilised. ECB series cartridges are manufactured from acid washed industrial grade bituminous granular activated carbon (GAC) extruded into a carbon block format. The SCB series is manufactured using fine, acid washed, bituminous powder activated carbon (PAC), greatly increasing surface area and cartridge life. Food grade additives are used to bond the PAC, enabling the SCB series to be suitable for drinking water applications. Extruded from high quality carbon fines, the SCB has a much higher adsorption capacity, extending life and improving chlorine reduction capacities compared to the ECB series. The result is a highly efficient carbon cartridge with sediment filtration capabilities. Constructed with an outer polypropylene wrap that protects and extends the life of the carbon block, capturing particles and preventing premature blinding. 9 ¾” and 40” lengths. Standard I,D. 28 mm, O.D. 64mm. Available in large diameter 116mm, 9¾” and 20″ lengths for reduced cartridge changeout frequency. ECB series : 1, 5 and 10 micron. SCB series : 5,10 micron. Double open ended. Maximum operating temperature 82o 2.5 Bar maximum dP.
