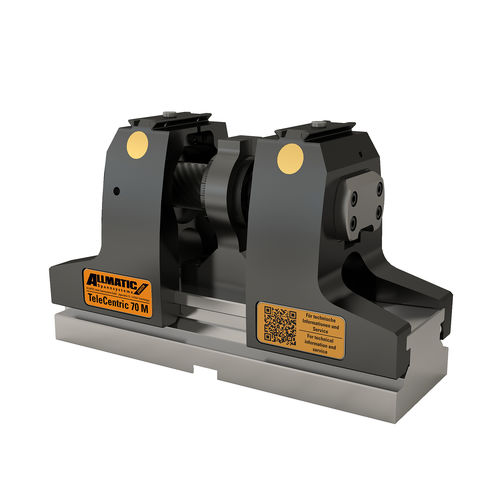

Machine tool vise TeleCentric 70 M

for 5-axis machining

Area of application: Ideal for use on 5-axis machining centres Conventional clamping and Gripp clamping possible Product features: Telescopic spindle, interference contour remains unchanged Central, simple programming without zero point offset The allowance of the material is symmetrically distributed Accessibility of the workpiece depends on the chuck capacity Symmetrical construction shape = workpiece remains central and parallel Support height of the workpiece 192 mm Quick change jaw system, tool-free jaw change due to quick-action closure within 10 seconds per jaw pair Reversible jaws: for min. / max. chuck capacities with one pair of jaws Constant clamping force via low-maintenance telescopic spindle Provided as standard with locating holes for a zero point clamping system, inside micrometer 200 Attachment to machine table with mounting raster 50/63mm for fitting bolt/cylinder screws or clamping shoes. Integrated scaling for fine adjustment of the central position Low weight (without jaws): K =17.5 kg / M=19.5 kg Clamping force 30 kN at 45 Nm linear Operation with torque wrench
