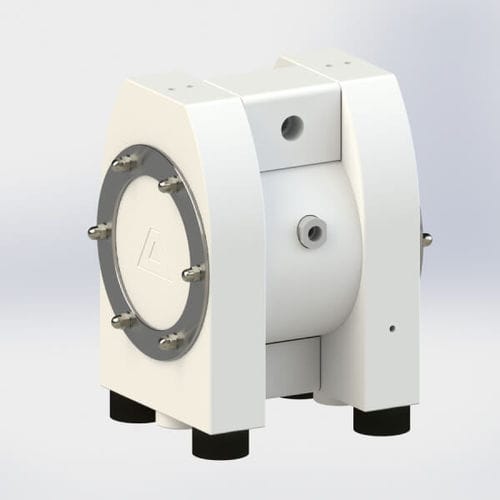

Double-diaphragm pump C-Seriespaintacidfor solvents
Add to favorites
Compare this product
Characteristics
- Technology
- double-diaphragm
- Fluid
- paint, acid, for solvents, for resin, for ink, for alkalis, slurry, for powders
- Operation
- air-driven
- Priming
- self-priming
- Domain
- industrial, for the chemical industry, refinery, for water treatment, for the paper industry, for the textile industry
- Applications
- for emulsions
- Material
- polyethylene, plastic, PTFE
- Fluid specification
- for solids-laden fluids
- Protection level
- ATEX, abrasion-resistant, chemical-resistant
- Other characteristics
- dry
- Flow
1.3 m³/h, 3.1 m³/h, 7 m³/h
(45.90907 ft³/h, 109.47547 ft³/h, 247.20267 ft³/h)- Pressure
7 bar
(101.526 psi)
Description
Almatec C-Series The Cost-Effective Plastic AODD Pumps
The Almatec® C-Series Air-Operated Double-Diaphragm (AODD) Pump is a cost-effective, reliable and superior-built alternative and features a solid design suitable for a wide array of pumping tasks.
The suction and discharge ports are available as separate housing parts. In addition to the standard connection, two further connection foot-prints are available to match existing installations. The ring tightening structure, good suction head, self-priming and dry run capability as well as the absence of drives, rotating parts and shaft seals are further features.
