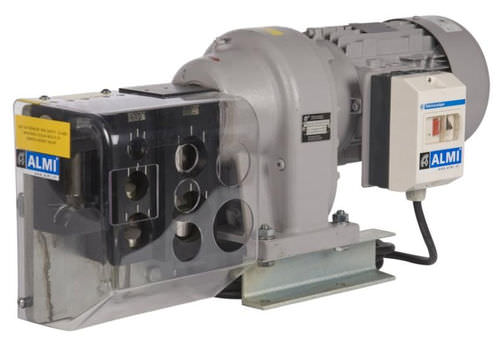

90° fixed angle notching machine AL1-2U

electrictubeautomatic

The motor driven AL 1-2U can be used to notch pipes with an external diameter of 27.9 mm (3/4”), 34.8 mm (1”), 42.8 mm (1 ¼”), 49.0 mm (1 ½”), 61.0 mm (2”) and notch pipes with an external diameter of 27 mm to 61 mm for sink outflows. Do you often have to notch pipes? If so, the motor-driven AL1-2U equipped with a 2.2 kW electric motor is the ideal solution! The motor forms one unit with the special eccentric shaft that drives the notching tool. The motor is also equipped with an on/off switch with a zero voltage protection and guard. All the benefits in a nutshell: high productivity, low investments, simple and rapid operation, a number of diameters are readily available, ideal for double corner joints.
