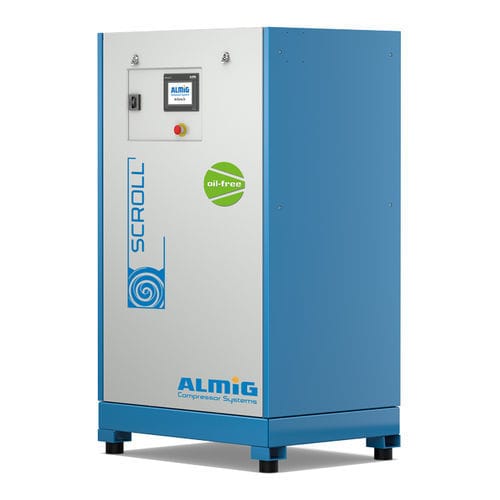

Scroll compressor SCROLL seriesairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- scroll
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-free
- Application domain
- industrial
- Applications
- bar
- Other characteristics
- compact, low-noise, high-efficiency, small, belt-driven
- Pressure
7 bar, 8 bar, 10 bar
(101.53 psi, 116.03 psi, 145.04 psi)- Flow
Max.: 1.76 m³/min
(62.15 ft³/min)Min.: 0.35 m³/min
(12.36 ft³/min)- Power
Max.: 15 kW
(20.39 hp)Min.: 4 kW
(5.44 hp)- Length
640 mm, 1,020 mm, 1,600 mm
(25 in, 40 in, 63 in)- Width
600 mm, 750 mm
(24 in, 30 in)- Height
895 mm, 1,645 mm, 1,830 mm
(35 in, 65 in, 72 in)- Weight
170 kg, 440 kg, 650 kg, 720 kg
(374.8 lb, 970 lb, 1,433 lb, 1,587.3 lb)- Noise level
61 dB
Description
The 100% oil-free SCROLL series is equipped with a highly efficient IE3 motor and operates very quietly with 61 dB(A) (SCROLL 04). The compact design makes the units ideal for installation in small and confined spaces or directly at the workplace.
The units operate in a volume flow range of 0.35 - 1.70 m3/min with an operating pressure of 8 and 10 bar. Due to the low-maintenance V-belt drive, the drive power of 4 - 15 kW is transmitted almost loss-free.
Compressor stage
The distance between the fixed and orbiting screw has been precisely designed and produced to maximise the delivery capacity.
Inlet valve
The inlet valve directs the intake air into the compressor block. The optimised air flow minimises pressure drop and noise level.
Radiator
The finned radiator is designed for highly efficient heat exchange and low pressure drop. The air flows from top to bottom through the cooler to avoid condensate backflow.
