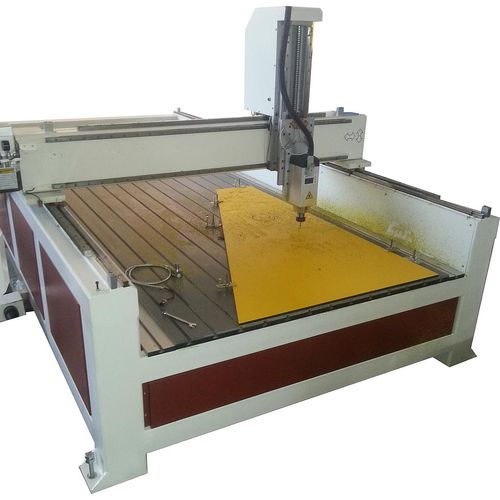

3-axis CNC milling machine B130D
verticalmobile gantryfor wood

3-axis CNC milling machine - B130D - Alòs Industrials - vertical / mobile gantry / for wood
3-axis CNC milling machine - B130D - Alòs Industrials - vertical / mobile gantry / for wood
3-axis CNC milling machine - B130D - Alòs Industrials - vertical / mobile gantry / for wood - image - 2
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
mobile gantry
Machined material
for wood
Applications
for molds, for the wood industry
Other characteristics
high-precision, high-productivity
X travel

Min.: 1,000 mm
(39.37 in)

Max.: 5,000 mm
(196.85 in)

Y travel

Min.: 1,000 mm
(39.37 in)

Max.: 3,000 mm
(118.11 in)

Z travel

300 mm, 400 mm, 500 mm, 600 mm
(11.81 in, 15.75 in, 19.69 in, 23.62 in)

Rotational speed

1,800 rpm
(11,310 rad.min-1)

Power

4.4 kW
(5.98 hp)

Weight

5,000 kg
(11,023.11 lb)

Overall length

3,100 mm
(122 in)

Overall width

2,100 mm
(82.7 in)

Overall height

1,600 mm
(63 in)

Description

The main advantage of this model is the height of the Z axis. They are high heights and it is especially indicated for the machining of moulds. Table measurements (mm): X5000 Y3000 - X2500 Y1300 - X3000 Y2000 - X1000 Y1000 - X4000 Y2000 Z axis height (mm): Z400 - Z500- Z600 - Z300 Tool changer: Not included - 6 ISO30 ER32 tools Table type: T-Slott - Empty - Mixed
