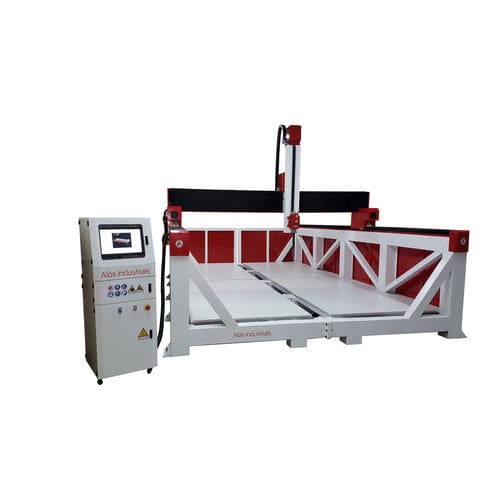

3-axis CNC milling machine B130Fverticalmobile gantryfor expanded polystyrene
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- mobile gantry
- Machined material
- for expanded polystyrene
- Other characteristics
- high-productivity
- X travel
5,000 mm
(196.85 in)- Y travel
3,000 mm
(118.11 in)- Z travel
1,200 mm
(47.24 in)- Rotational speed
18,000 rpm
(113,097 rad.min-1)- Power
4.4 kW
(5.98 hp)- Weight
5,000 kg
(11,023.11 lb)- Overall width
3,000 mm
(118.1 in)- Overall height
1,200 mm
(47.2 in)
Description
It is a three-axis milling machine, XYZ. The machine is specifically designed for the machining of semi-hard materials such as expanded polystyrene.
- High production, minimum maintenance.
Measurements: X5000 Y3000 Z1200
Motor: With hollow shaft for suction 4.4Kw
Table: Adhesive fixing
Numerical control by PC
Motors: Servo in all axes
speed 15m/min
