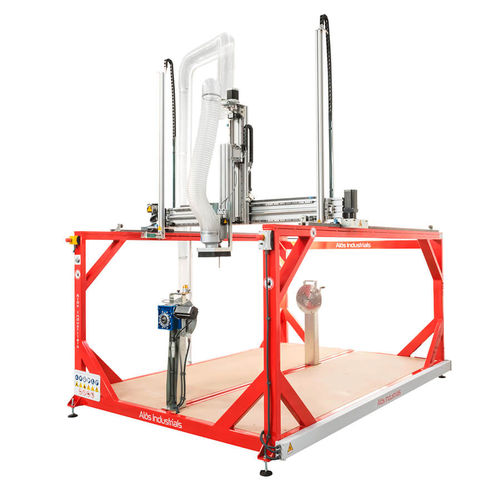

4-axis CNC milling machine B140C
verticalfor woodfor expanded polystyrene

4-axis CNC milling machine - B140C - Alòs Industrials - vertical / for wood / for expanded polystyrene
4-axis CNC milling machine - B140C - Alòs Industrials - vertical / for wood / for expanded polystyrene
4-axis CNC milling machine - B140C - Alòs Industrials - vertical / for wood / for expanded polystyrene - image - 2
4-axis CNC milling machine - B140C - Alòs Industrials - vertical / for wood / for expanded polystyrene - image - 3
4-axis CNC milling machine - B140C - Alòs Industrials - vertical / for wood / for expanded polystyrene - image - 4
Add to favorites
Compare this product


Characteristics

Number of axes
4-axis
Spindle orientation
vertical
Machined material
for wood, for expanded polystyrene
Other characteristics
high-precision, high-productivity, CE
X travel

2,500 mm
(98.43 in)

Y travel

1,200 mm
(47.24 in)

Z travel

600 mm
(23.62 in)

Rotational speed

18,000 rpm
(113,097 rad.min-1)

Power

1.5 kW
(2.04 hp)

Weight

800 kg
(1,763.7 lb)

Overall width

2,540 mm
(100 in)

Overall height

2,800 mm
(110.2 in)

Description

Milling machine for machining polystyrene. It is our most complete machine for working with polystyrene, since it combines in a single machine the possibility of performing milling work in three axes with a table and four axes without a table, as it has a practical and quick disassembly system for the table, being able to machine large blocks with four axes. It also integrates a cutting wire to carry out the work of roughing the material to facilitate the final finish with a milling cutter or also to cut plates with wire to create signage, contour pieces, etc. Ideal for the sectors of fallas, theming, architecture, decoration...
