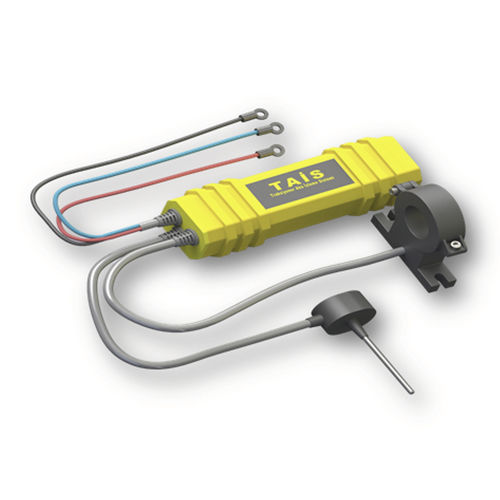

Battery monitoring system ALPTAIS

temperaturecurrentvoltage

ALPTAIS traction battery monitoring system is a high-performance wireless battery monitoring system applied for traction batteries that can monitor critical parameters of batteries during operation. ALPTAIS eliminates unplanned interruptions. It maximizes the usage time and helps you to reduce the operating costs. It is also effective in extending the life of your batteries by allowing remote monitoring of battery parameters in your fleet. ALPTAIS continuously measures the parameters of the battery it is connected. Analyzes and evaluates these measurements. It transfers the measured data and evaluation results to the web server via Wi-Fi. In cases where there is no Wi-Fi access, it saves the data it receives in its memory. When it provides Wi-Fi access, it transmits the recorded data to the WEB server. System; It measures Battery Total Voltage, Midpoint Voltage, Electrolyte Level, Battery Temperature and Battery Current parameters. These parameters are measured in all situations that the battery is Charged, Discharged and Idle. Features • Wide Voltage Range (12V-96V) • Unbalanced with Midpoint Voltage Measurement • Finding Cells • Wireless Connection (Wi-Fi) • Permanent Registration Memory • Data Retrieval without Physical Intervention • Easy and Quick Installation • No Software Installation Required • Warning / Alarm Notification Via E-Mail • Status Notification via LED on Device • Ambient Temperature Reading (Option) • Mobile 3G / GPRS (Option) Reporting • Battery Instant Data (Battery No, Type, Ah etc.) • Used / Remaining Battery Cycles • Charge, Discharge and Idle States • Number and Period of Deep Discharge • Charge / Discharge Current (Ah)
