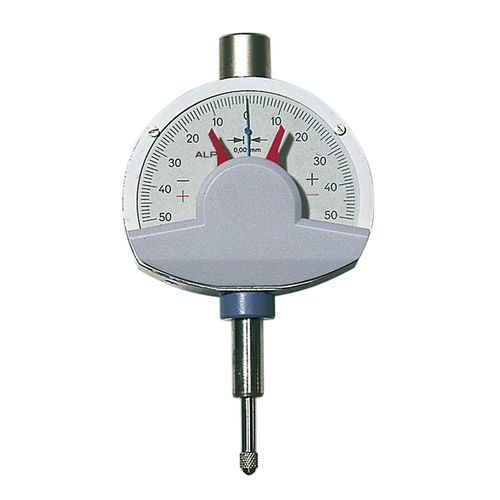

Dial comparator CB025ZERO
Add to favorites
Compare this product
Characteristics
- Options
- dial
- Measuring range
0.05 mm
(0.002 in)- Resolution
0.001 mm
(0.00004 in)
Description
High accuracy and sensibility dial gauge. Resolution 0,001, maximum effective range ±0,5mm. Total measuring travel 3mm. Upper screw for zero adjustment. Jewelled mechanism, shockproof, according to DIN 879 standard. Stem movement on spheres.
Catalogs
No catalogs are available for this product.
See all of Alpa Metrology‘s catalogs
