Tubular heating element UPS
flatflexiblering

tubular heating element
tubular heating element
tubular heating element
tubular heating element
tubular heating element
tubular heating element
Add to favorites
Compare this product


Characteristics

Type
tubular, flat, flexible, ring
Material
silicone
Applications
for laboratory incubators, for liquids and gases, for gas, for pump, for fluid preheating, for hopper
Other characteristics
custom, compact, adhesive, with thermostat, multi-zone, smart
Power

Min.: 1 W
(0 hp)

Max.: 5,000 W
(6.8 hp)

Maximum temperature

Min.: 0 °C
(32 °F)

Max.: 200 °C
(392 °F)

200 °C
(392 °F)

Description

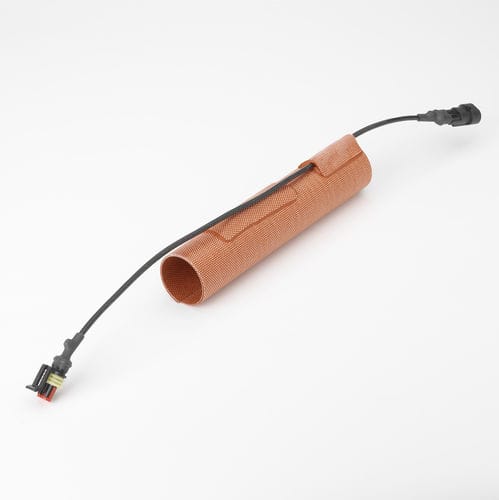

Alper ultra-flat preformed silicone heaters are produced by chemical etching (etched foil ) or wire wound and allow to reduce very much the thickness of the heating element down to min. 0.8mm. They are used in various application fields such as the aerospace, vessels, household appliances, dishwashers, industrial applications, kettles, heating bands for drums and many others. The technology, unique in its kind, consents to minimize the thickness of the heating element while allowing a very intense heating production with temperatures up to 200°C continuously and up to 230°C for peaks. The reliability over time under extreme conditions of silicone rubber makes this product the best choice in industry and medicine. The silicone heating elements can be supplied with slots,holes, hooks and straps as well as Velcro and eventual customizations on request. Upon request also a wide range of accessories such as fixed and adjustable thermostats, sensors, Pt100 and pockets for housing probes are available. Alper flexible silicone heaters are UL approved ( file E466385 ) Usa and Canada
