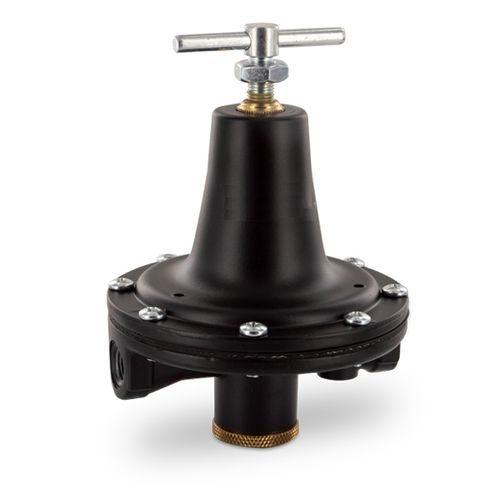

Compressed air pressure regulator R216

for inert gasesmembranesingle-stage

Although without air consumption, the precision pressure regulators of the R216 series still show a good response sensitivity of less than 100 mbar. They are suitable for compressed air as well as neutral gases. As a special feature the regulator can be delivered free of oil and grease, which makes the item applicable for a clean ventilation of plant components not in use or for the nitrogen blanketing of sensitive products. The product variant with handwheel is also appropriate for panel installation. The housing is made of zinc die casting, the elastomer of NBR. The R216 series is available in three different pressure regulation ranges: 0.01 – 0.6 bar, 0.01 – 1.6 bar and 0.01 – 3.5 bar. As connection thread G and NPT are offered. Good regulation accuracy at varying flow
